LR44 / WELD-IT-YOURSELF KIT

Lone Star Log Rack, 44 in

The matching rack for the Lone Star fire pit. Sixteen laser-cut 10 ga steel parts tab together and square themselves up, with Texas star end panels. Cut in Greenville, Texas.

$310Free shipping to the lower 48.
Tax is added at checkout.
Built size
44 × 14 × 36 in
Kit weight
72 lb
Laser-cut parts
16
Steel
10 ga (0.135 in) hot-rolled steel
Ships in
2 parcel boxes
THE KIT / LR44

What you get

Good to knowSet it on level ground, at least 10 ft from a fire pit or grill. It isn't a ladder or a seat.

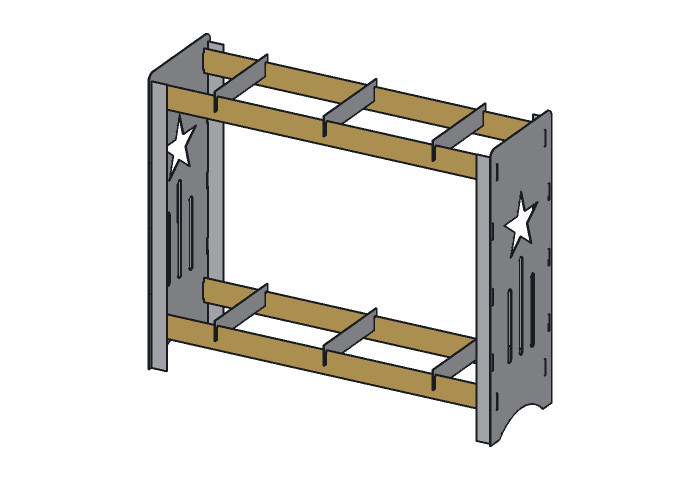

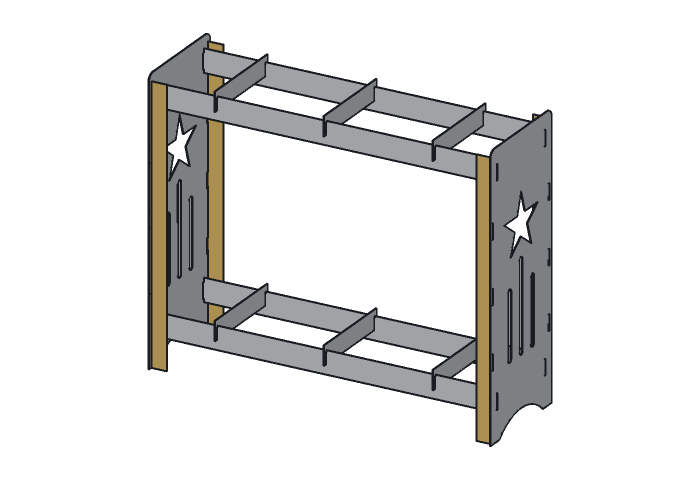

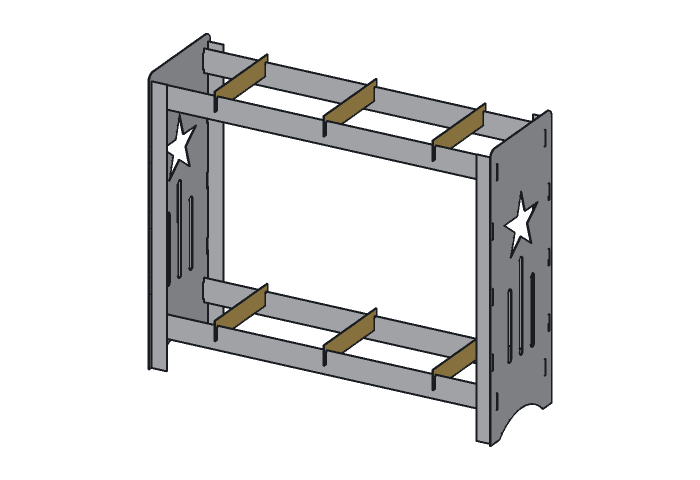

IN THE BOX / 16 LASER-CUT PARTS

What’s in the box

Ships flat in 2 parcel boxes, 46 × 16 × 4 in, about 38 lb each.

ASSEMBLY / 5 STEPS

How it goes together

The illustrated assembly guide walks through every fit-up, tack and weld. Download the guide (PDF).

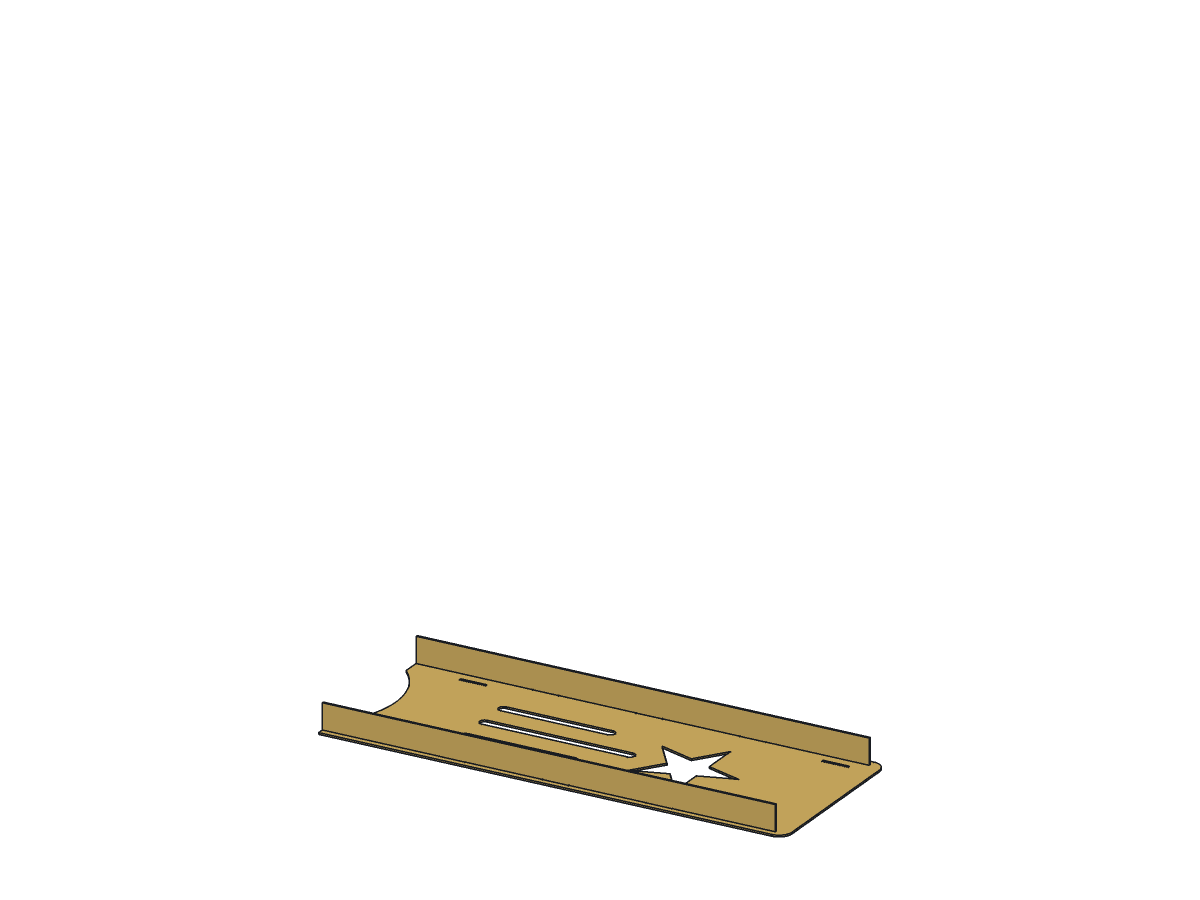

  1. Lone Star Log Rack, 44 in, assembly step 1
    STEP 1

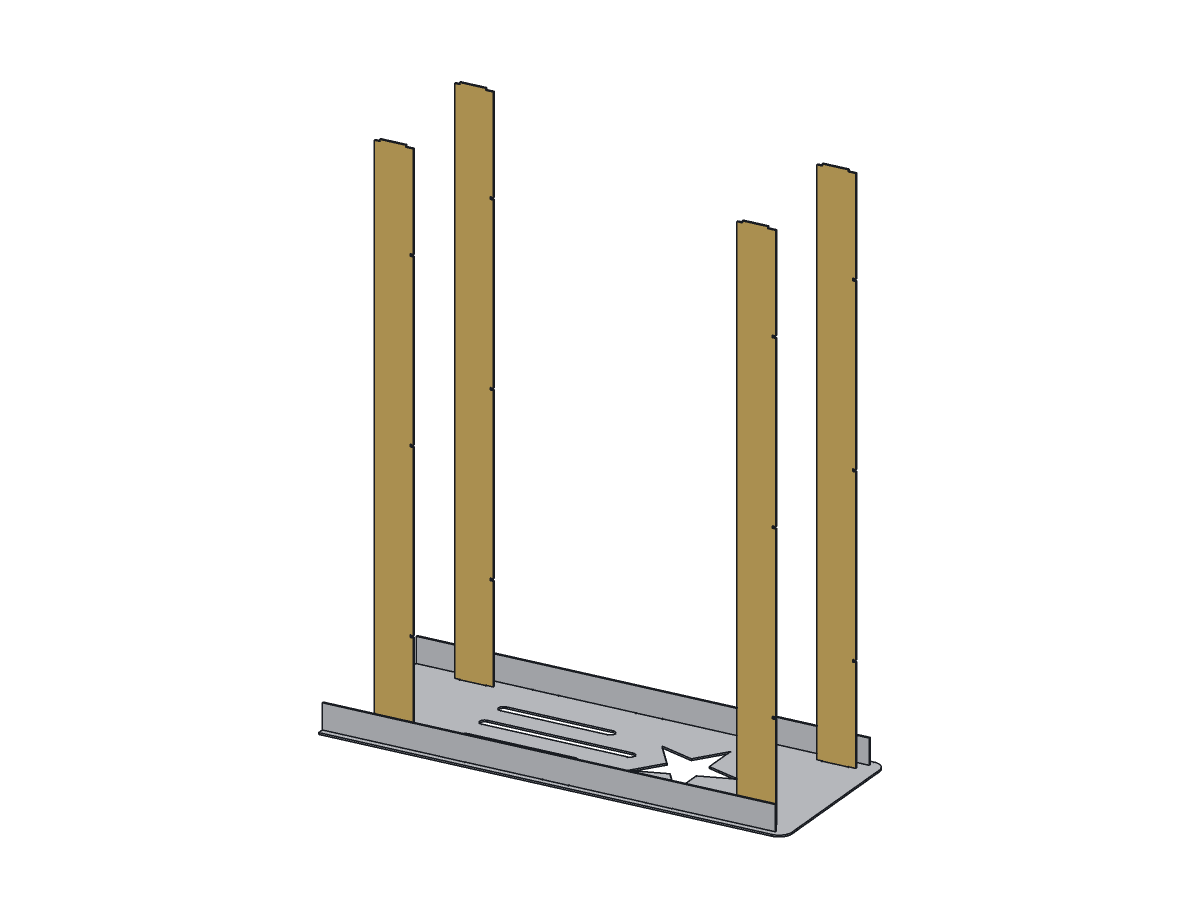

  2. Lone Star Log Rack, 44 in, assembly step 2
    STEP 2

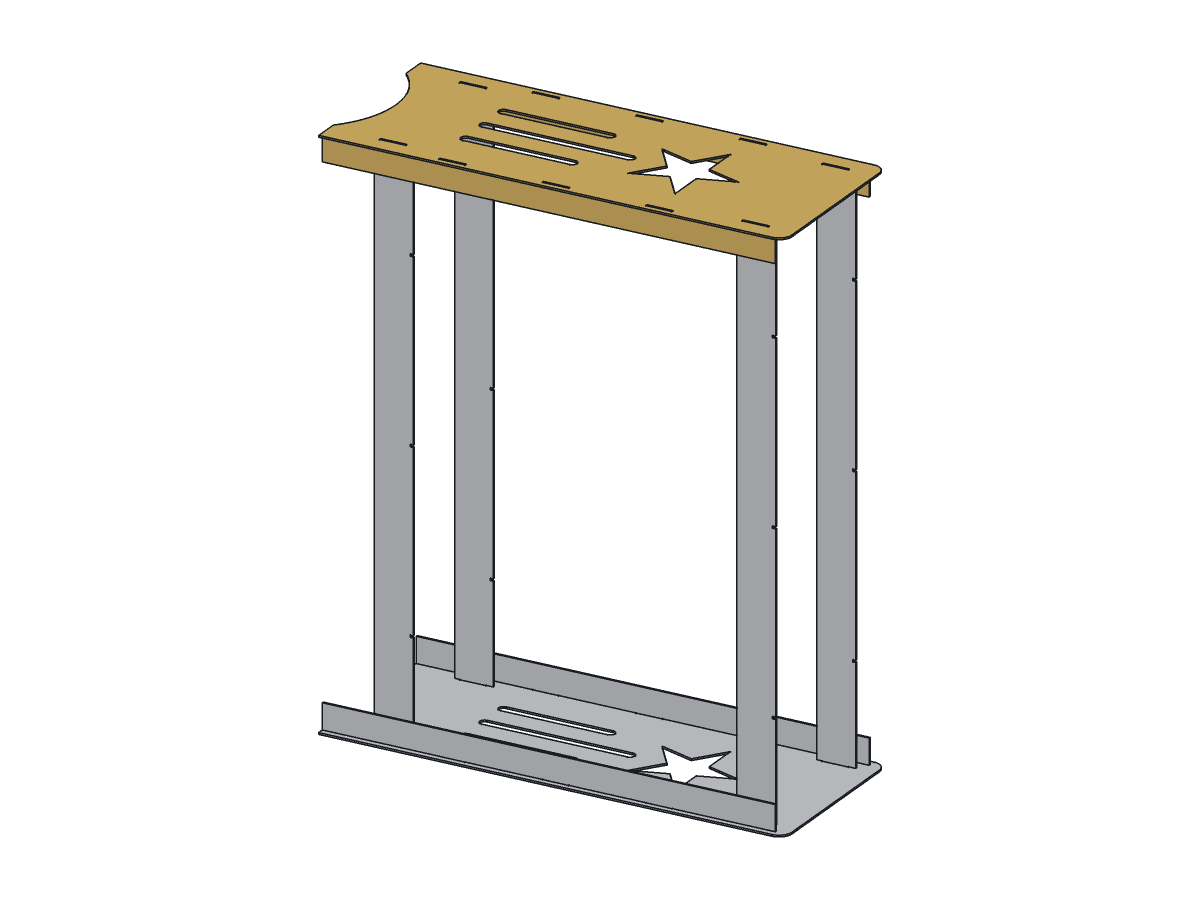

  3. Lone Star Log Rack, 44 in, assembly step 3
    STEP 3

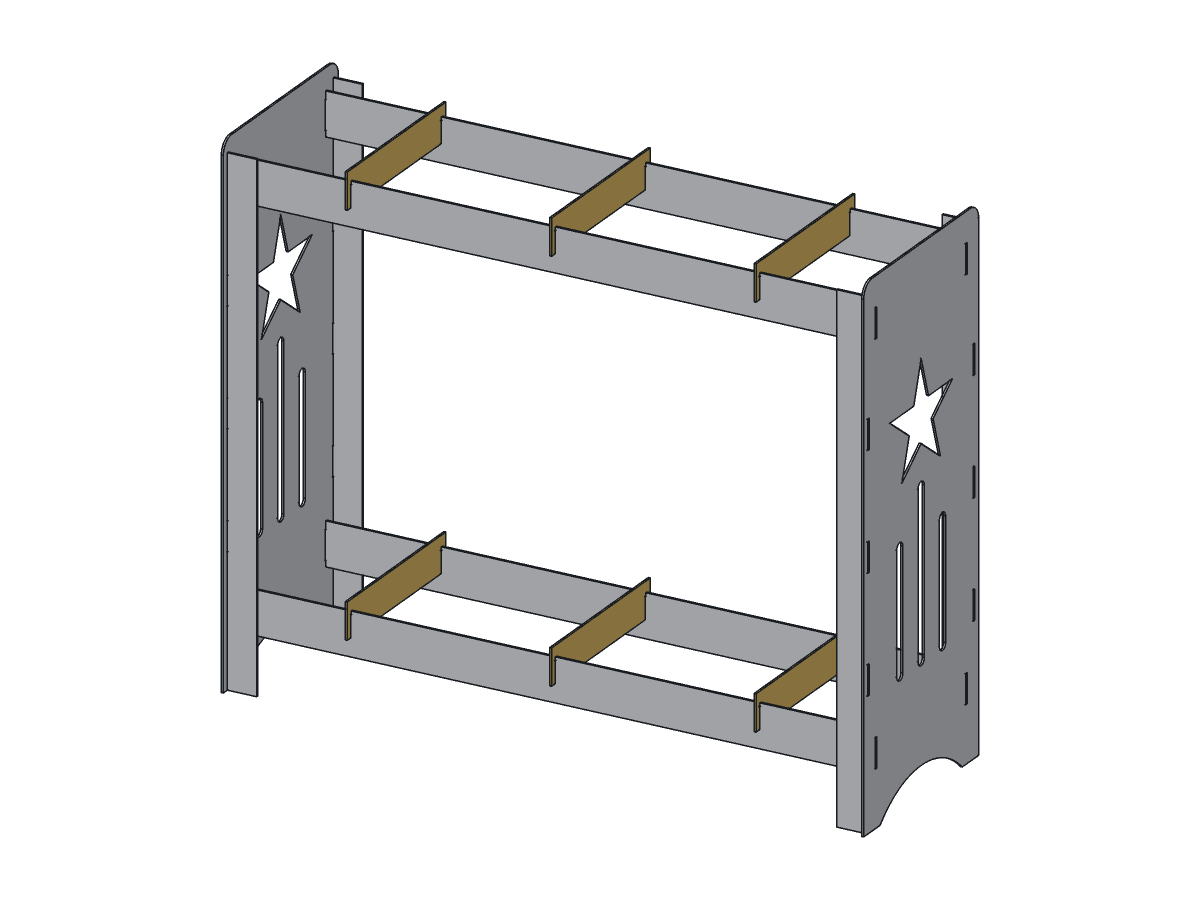

  4. Lone Star Log Rack, 44 in, assembly step 4
    STEP 4

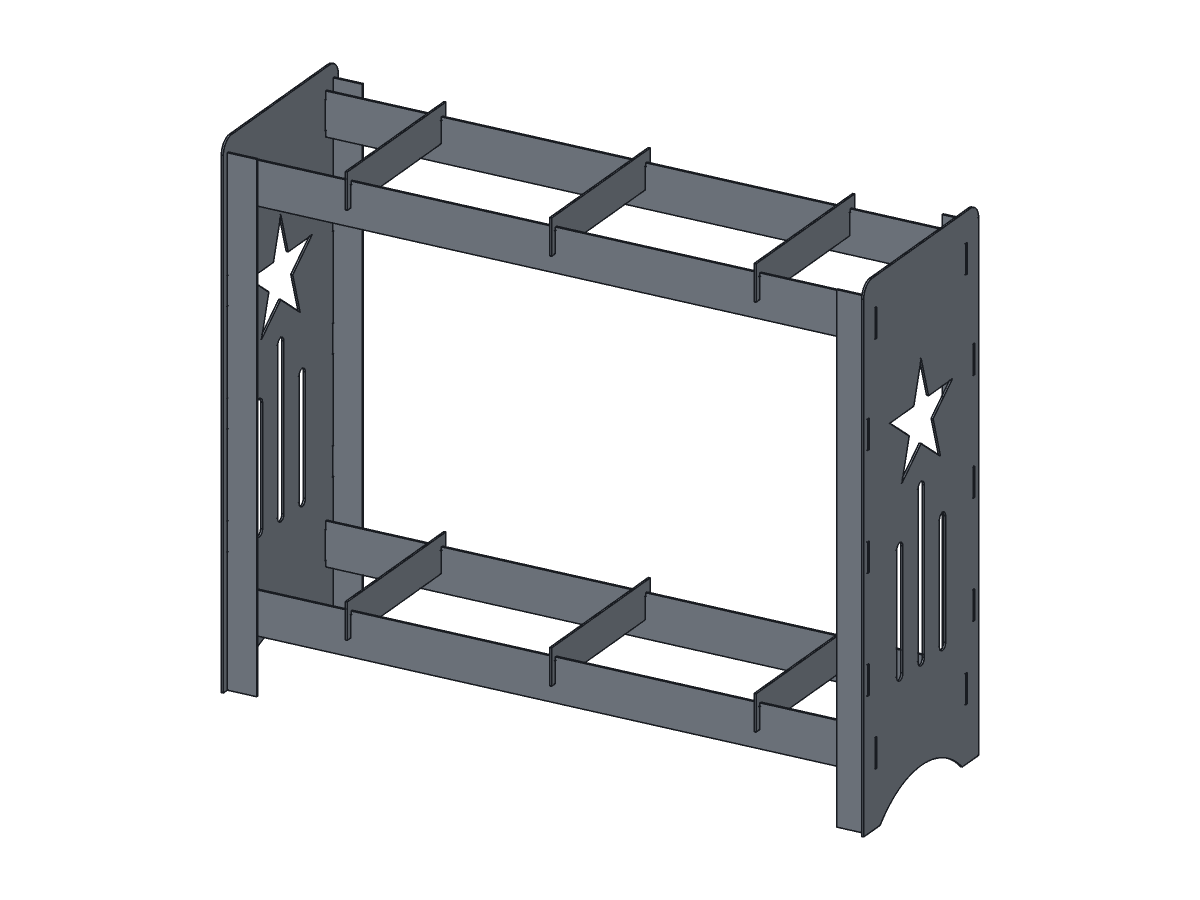

  5. Lone Star Log Rack, 44 in, assembly step 5
    STEP 5

What you’ll need

  • MIG or flux-core welder (a 120 V machine handles 10 ga)
  • Angle grinder with a flap disc and wire wheel
  • Four or more clamps
  • Framing square and tape measure
  • Rubber mallet and a flat file
  • A helper for step 2 (optional)
  • Welding helmet, gloves, jacket and safety glasses

Finishing

  • The parts ship bare with a light oil film. Wipe them down with a degreaser before welding.
  • Grind off weld spatter, then sand or wire-wheel the surfaces you plan to paint.
  • Use an exterior metal primer and enamel, or a rust-converting paint; high-heat paint isn't needed.
  • Or skip paint and let it weather to a rust patina that matches a raw-steel fire pit.

Safety

  • Set the rack on level, firm ground. Load it from the bottom up and keep the stack even so it can't tip.
  • It isn't a ladder or a seat. Don't let kids climb it.
  • Keep a loaded rack at least 10 ft from a fire pit, grill or chiminea.
  • Stack firewood away from your house walls to keep insects out of the house.
ORDER / LR44

Ready to build?

$310, laser-cut in Greenville, Texas and shipped flat in 2 parcel boxes. Free shipping to the lower 48; tax is added at checkout.
