You SketchBring your tube parts to our Greenville shop. We cut holes, slots and end profiles in round, square and rectangular tube with our TRUMPF TruLaser Tube 7000.
The 6 kW tube laser takes sections that fit a 10 in envelope, lengths up to 20 ft and walls up to 1/2 in.
Discuss your tube parts

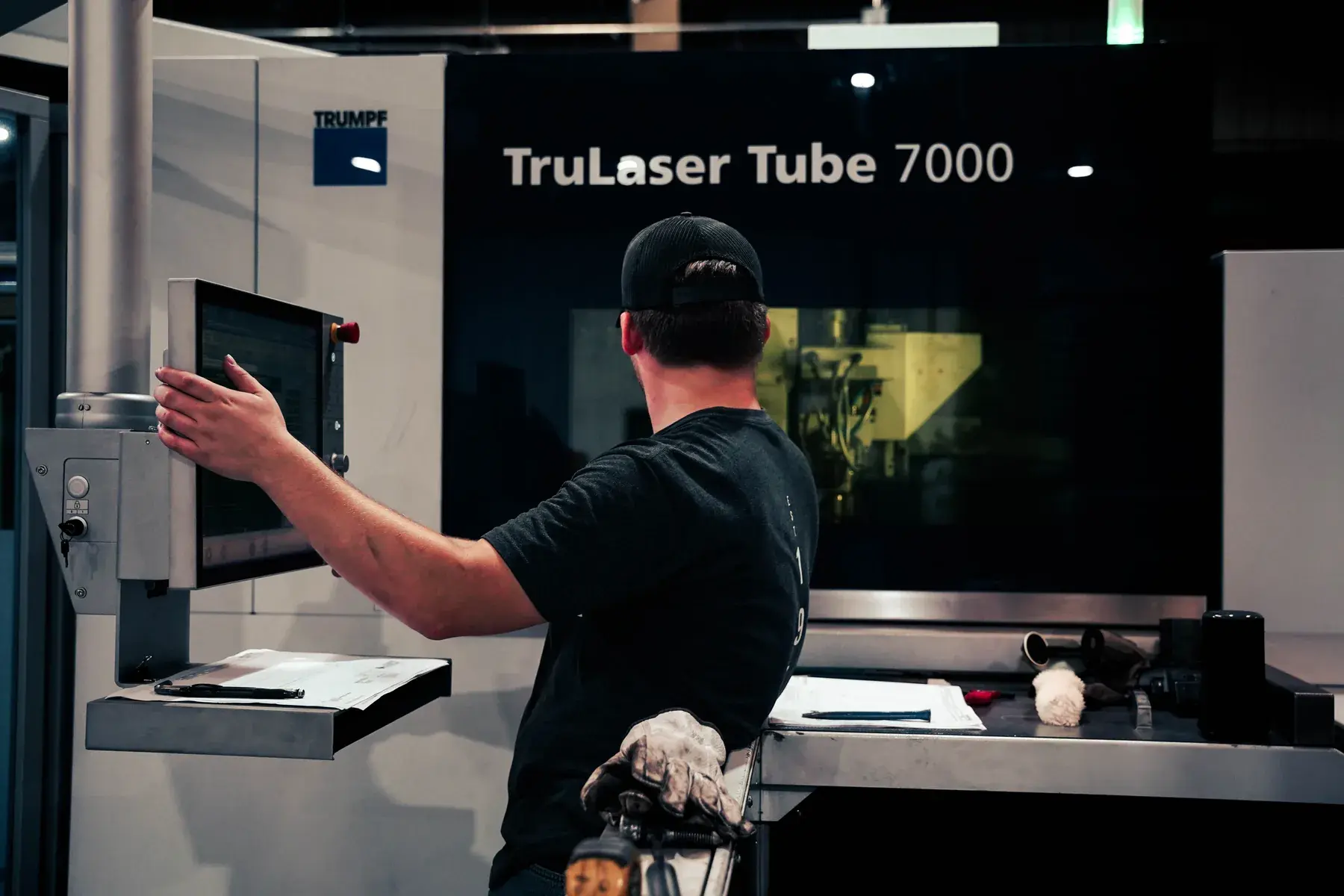

The tube laser in our Greenville shop.

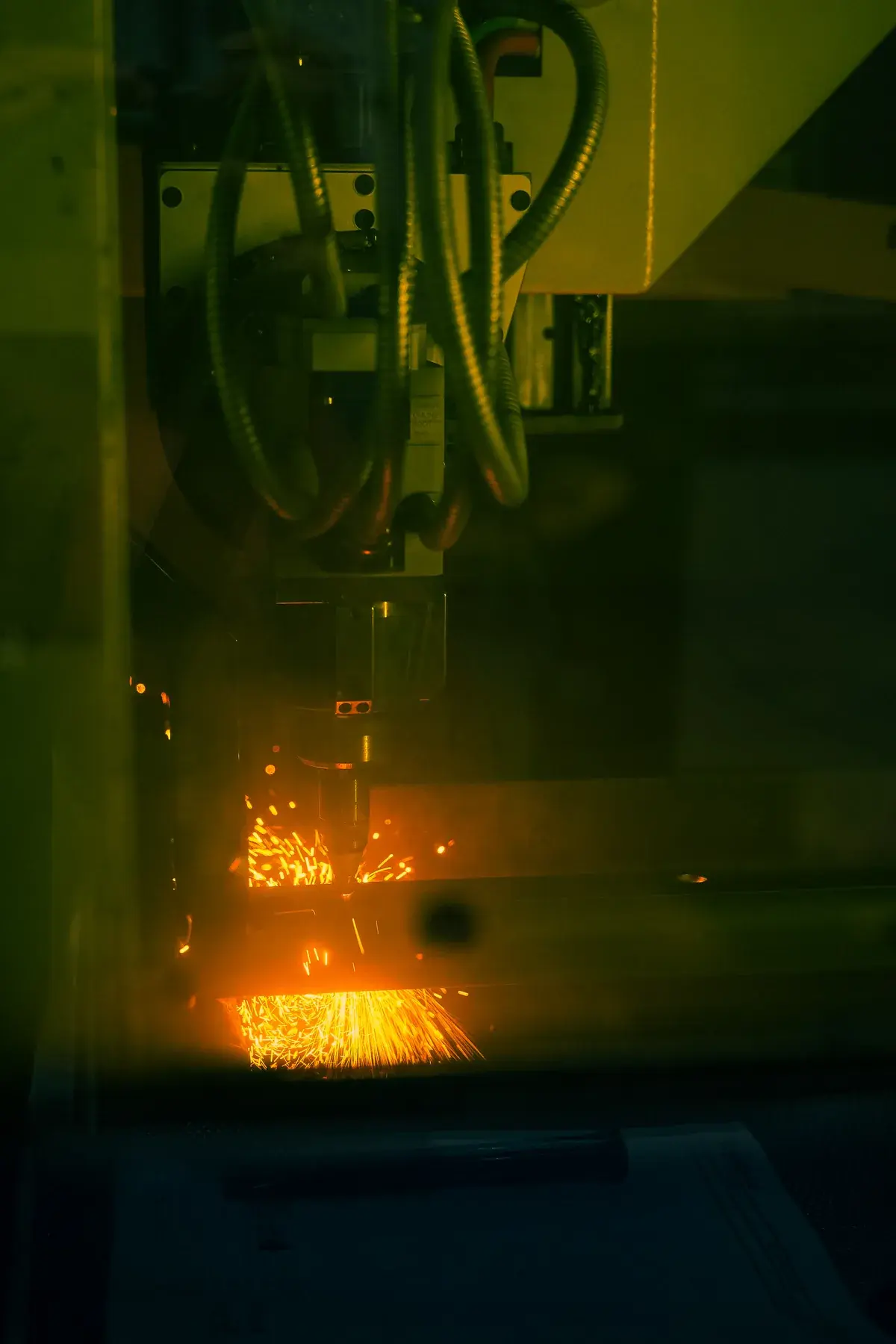

A cut in progress, seen through the machine enclosure.

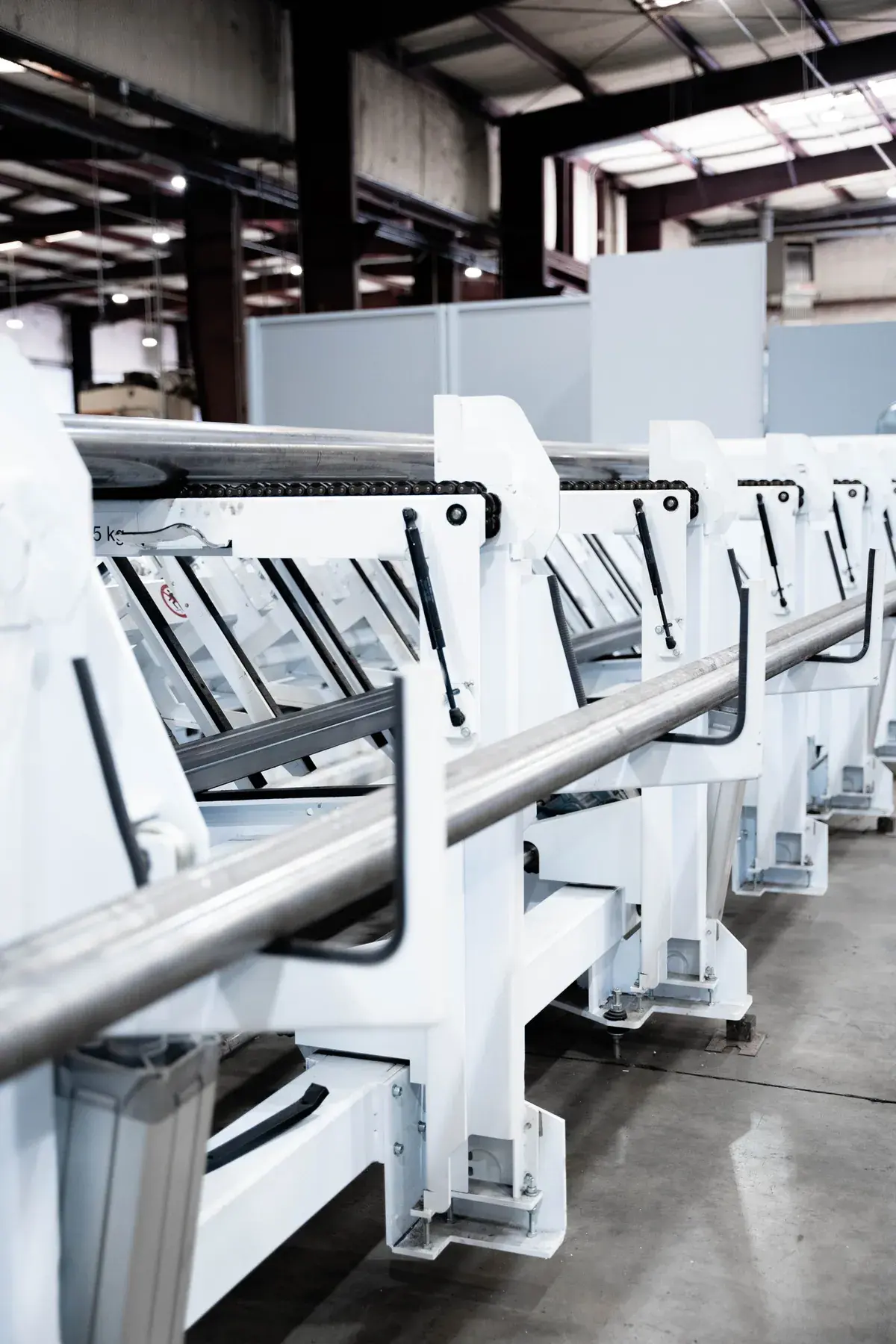

A view along the tube laser’s material feed.
From a single part to repeat production, send us the geometry and the job it needs to do.
The section rotates in the chuck, so its diagonal has to fit the 10 in envelope: square tube tops out at about 7 in, and 6 × 8 in rectangular sits right on the line. Send us the section, wall and length and we’ll confirm before you commit to material.
The Tube 7000 cuts length, copes, holes, slots and weld prep in one operation. Include feature sizes, positions and critical fits in your drawings.
Send tube components for machinery, equipment frames, fixtures and fabricated assemblies, including data center projects.
If your tube parts need to become an assembly, include the weld details and finish in the same inquiry. We also offer sheet metal laser cutting, deburring, bending and powder coating.
We’ll review the complete parts package and confirm the work covered by your quote.
See all shop capabilitiesYou Sketch We Cut offers tube laser cutting on a TRUMPF TruLaser Tube 7000 at 3734 TX-34 S in Greenville, Texas. Call 903-883-2002 or send a project inquiry to discuss your tube parts.
Carbon steel, stainless steel and aluminum sections that fit a 10 in envelope, in lengths up to 20 ft with walls up to 1/2 in. Square tube tops out at about 7 in. Send the profile, wall and length and we’ll confirm the fit before you commit to material.
A drawing or model, tube specification, finished length and quantity. Identify critical hole locations, end profiles and fits, and include any welding, finish or delivery requirements. If drawings are still in progress, send the information you have.
Yes. Send the assembly drawing and parts list so we can review the sheet cutting, tube cutting, forming, welding and finishing required for the project.
