RG12 / WELD-IT-YOURSELF KIT

Lone Star Rocket Griddle and Pot Skirt, 12 in

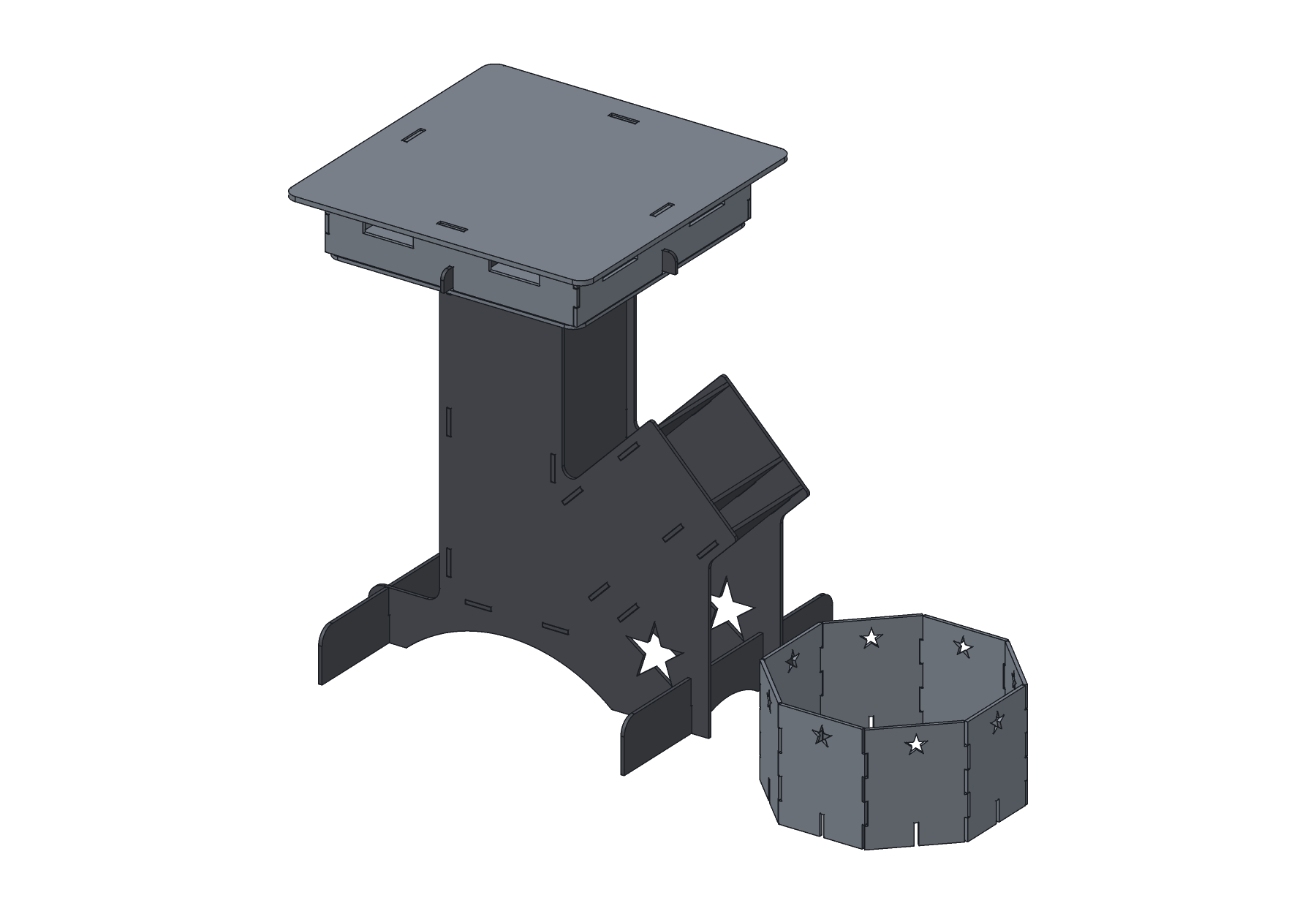

Concept image of the Lone Star Rocket Griddle and Pot Skirt, 12 in welded and finished, generated from the CAD designConcept image
Concept image made from the CAD design, not a photo. Prototype photos coming soon.

Turn the RS4 rocket stove into a camp kitchen. This set builds two add-ons:

$99Free shipping to the lower 48.
Tax is added at checkout.
Ask about this kit Assembly guide (PDF)
Projects
2 builds in one box
Kit weight
17.6 lb
Laser-cut parts
14
Steel
10 ga (0.135 in) hot-rolled steel, 3/16 in hot-rolled steel
Ships in
1 parcel box
THE KIT / RG12

What you get

Good to knowBoth sit on the stove's own pot support, over a collar that closes off the riser top, and both lift off when you're done. The griddle plate even holds the box square while you weld it. Cut in Greenville, Texas.

Good to knowFits the Lone Star RS4 rocket stove only. Outdoors only, on level bare ground; let everything cool before you pack it.

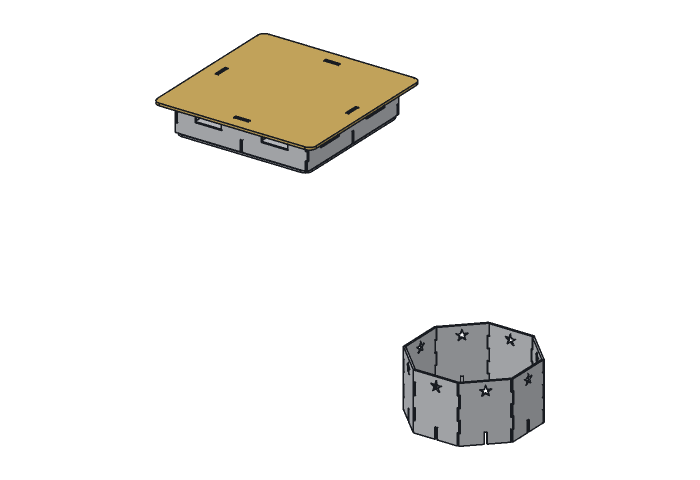

IN THE BOX / 14 LASER-CUT PARTS

What’s in the box

Ships flat in 1 parcel box, 14 × 14 × 4 in, about 18.1 lb.

ASSEMBLY / 3 STEPS

How it goes together

The illustrated assembly guide walks through every fit-up, tack and weld. Download the guide (PDF).

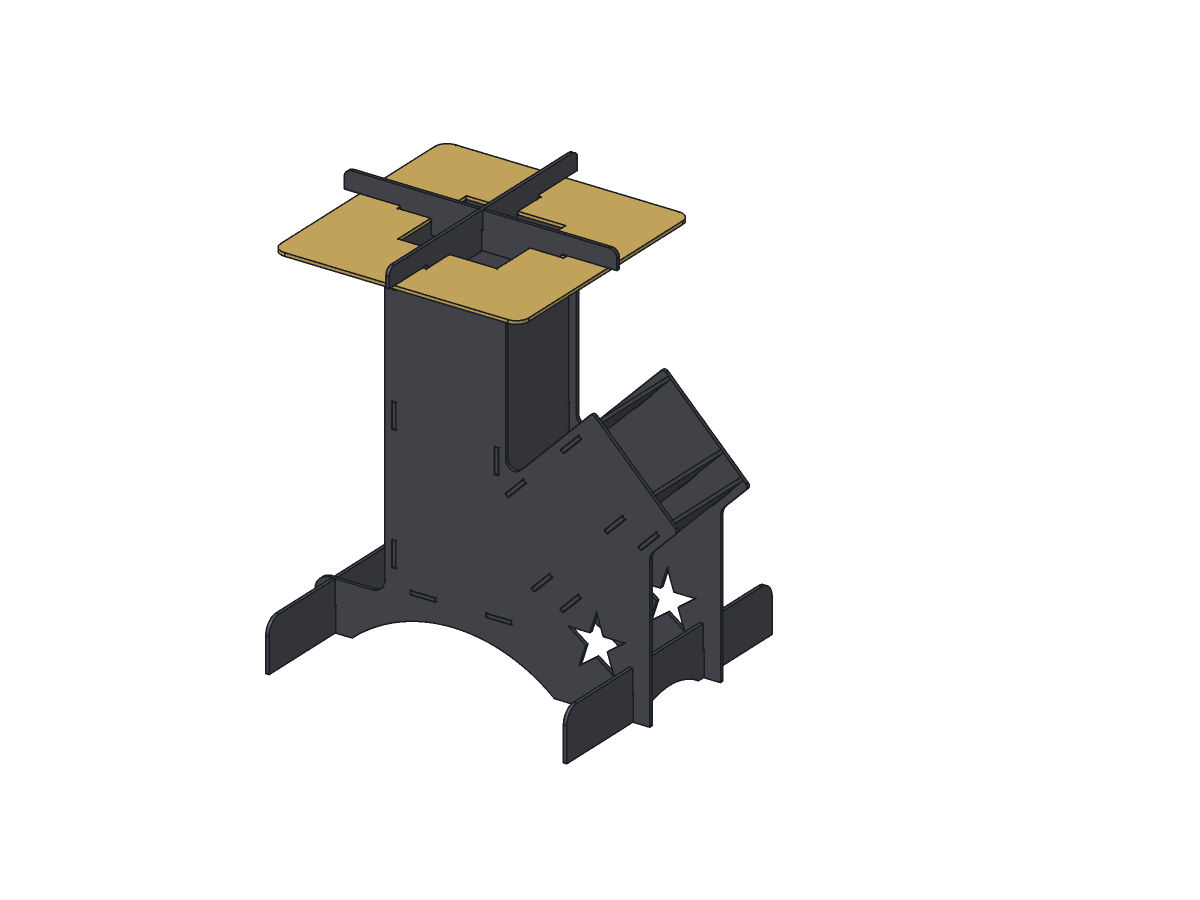

  1. Lone Star Rocket Griddle and Pot Skirt, 12 in, assembly step 1
    STEP 1

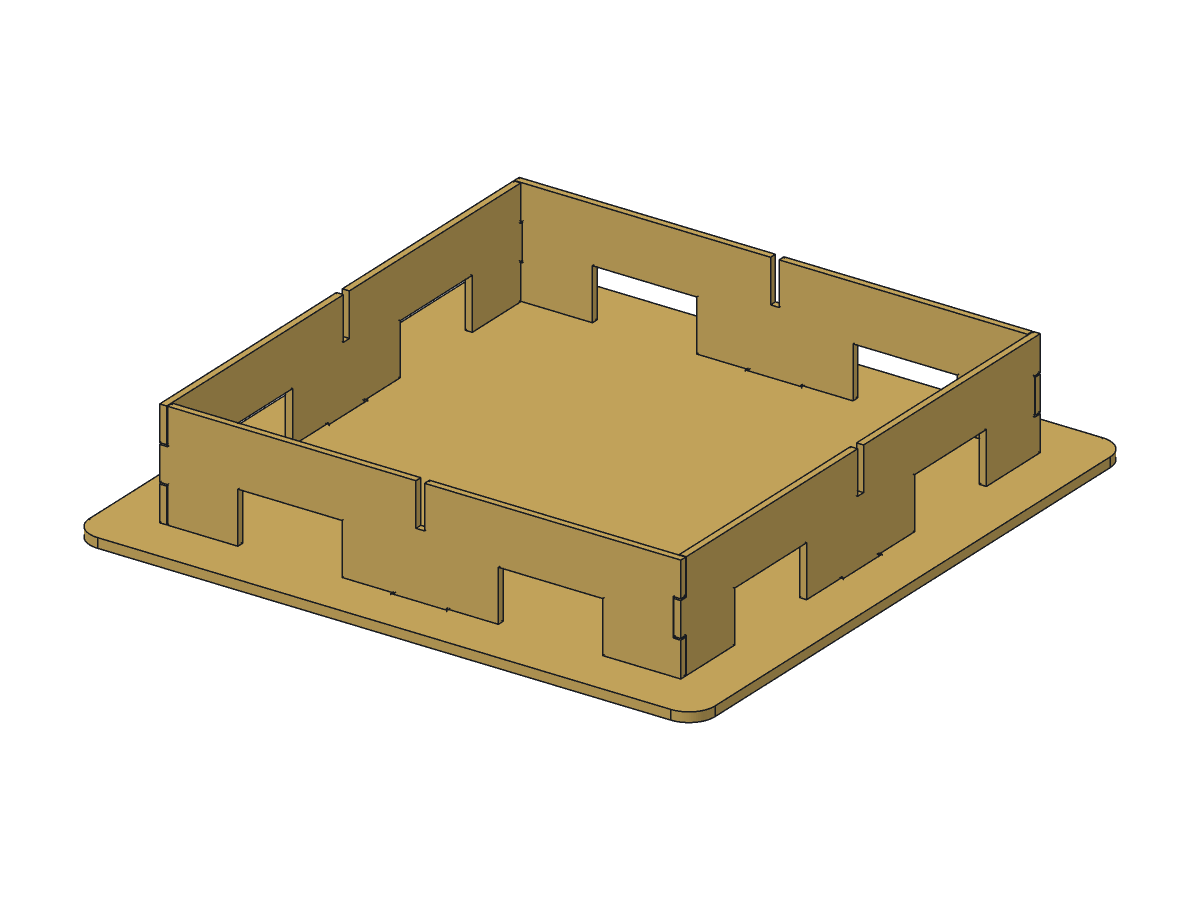

  2. Lone Star Rocket Griddle and Pot Skirt, 12 in, assembly step 2
    STEP 2

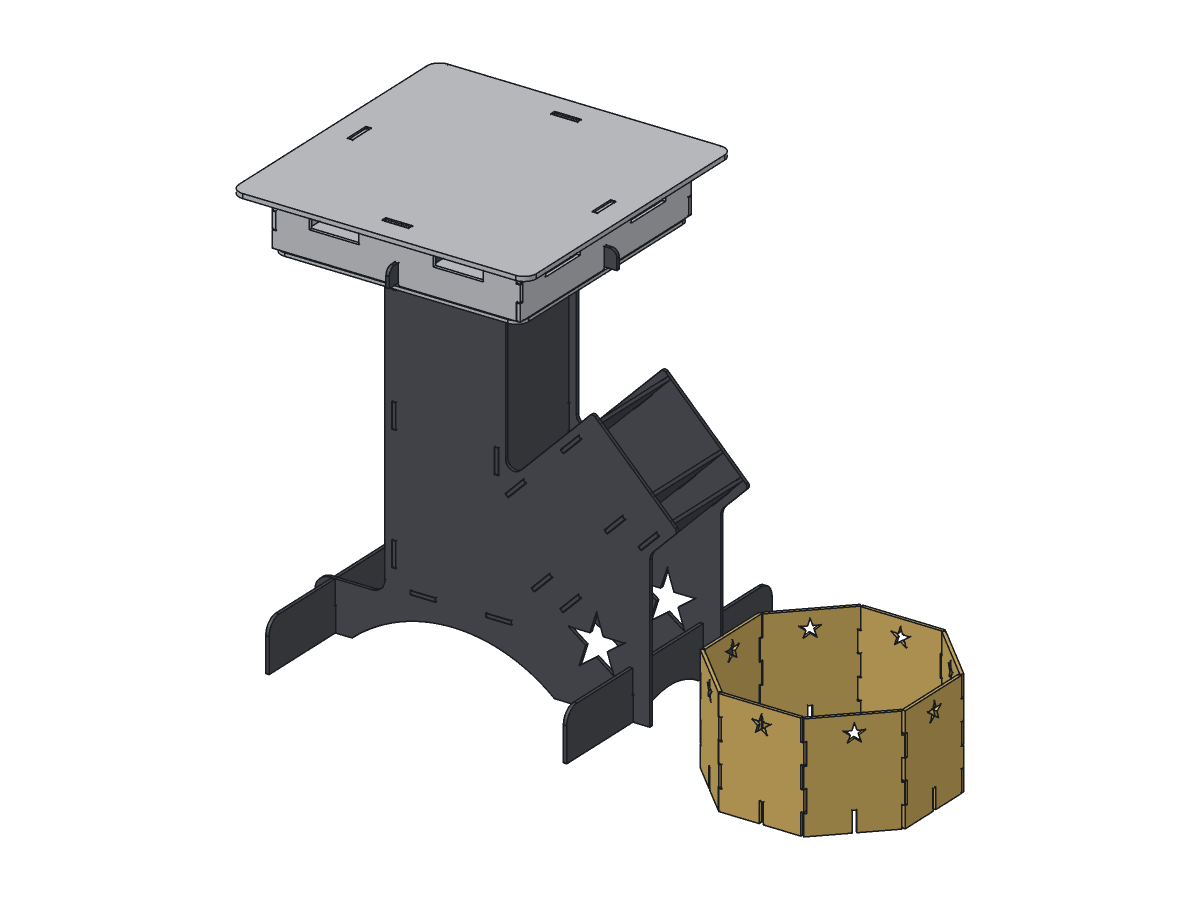

  3. Lone Star Rocket Griddle and Pot Skirt, 12 in, assembly step 3
    STEP 3

What you’ll need

  • MIG or flux-core welder (a 120 V machine handles 10 ga)
  • Angle grinder with a flap disc
  • Two small clamps
  • Rubber mallet
  • Welding helmet, gloves, jacket and safety glasses

Finishing

  • The parts ship bare with a light oil film. Wipe them down with a degreaser before welding.
  • Grind the box and skirt corner welds smooth, and break the griddle plate's edges.
  • Season the griddle plate like cast iron: scrub it, wipe on a thin coat of high-smoke-point oil, and heat it on the stove until it stops smoking. Repeat two or three times.
  • Leave the box, skirt and collar bare, or paint their outsides with 1200 F high-heat paint.
  • Store the plate dry with a light coat of oil. The skirt nests inside the griddle box.

Safety

  • Outdoors only. A wood fire makes carbon monoxide: never cook in a tent, vehicle, camper, garage or under an awning.
  • Set the stove on level bare ground, gravel or stone first. Never use it on a table, a tailgate or a deck.
  • The plate, box, skirt and collar all get hot enough to burn. Use heat-resistant gloves and a long spatula.
  • Keep the cooking centered. Don't lean on the griddle or set heavy pans on its edge, and never move the stove while it's lit.
  • Scrape grease off as you cook. If grease catches fire, smother it with a lid or baking soda; never use water.
  • Many campgrounds and public lands ban wood fires and stoves during fire restrictions. Check before every fire.
  • Let everything cool completely before you take it off the stove or pack it.
ORDER / RG12

Ready to build?

$99, laser-cut in Greenville, Texas and shipped flat in 1 parcel box. Free shipping to the lower 48; tax is added at checkout.
