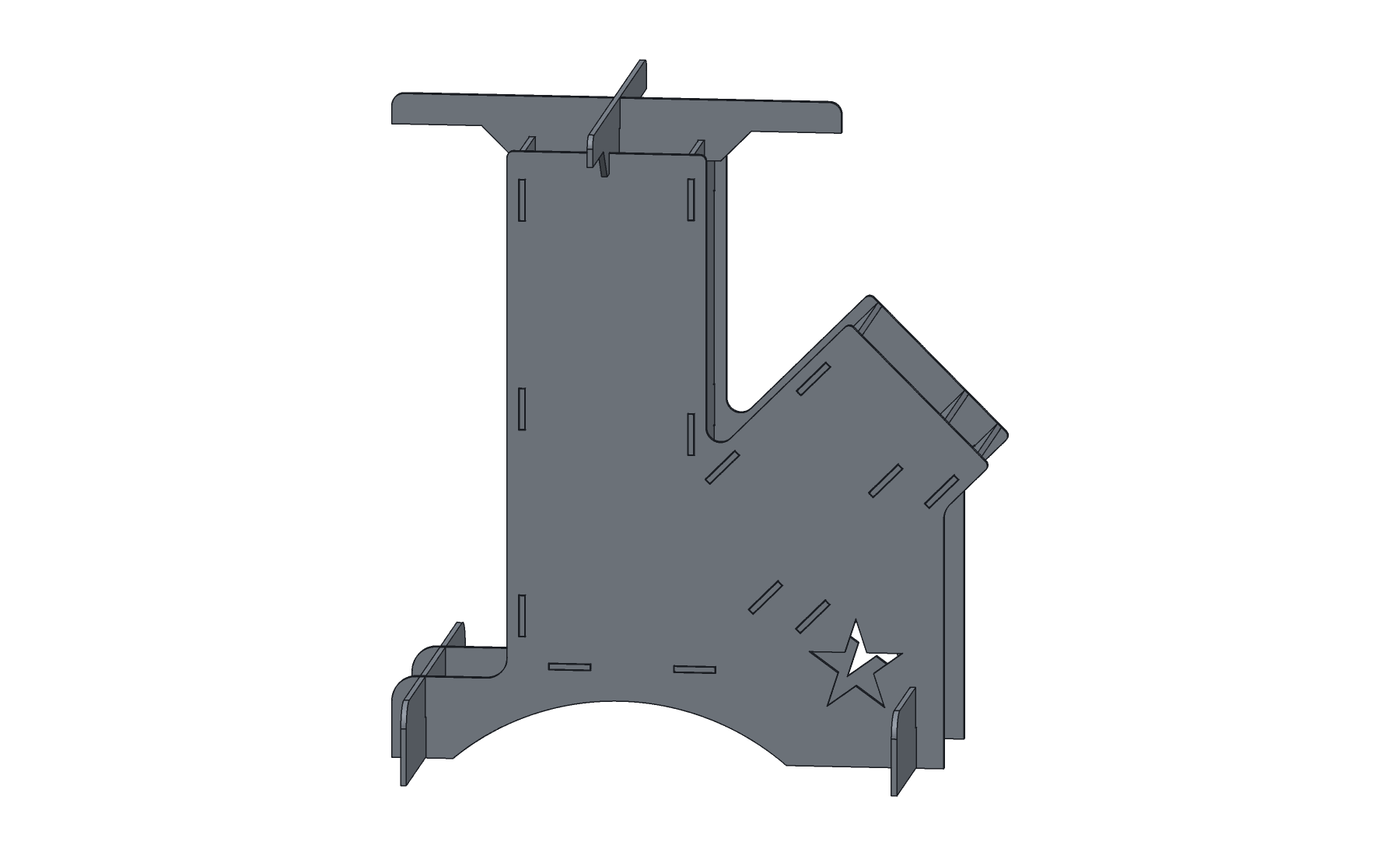

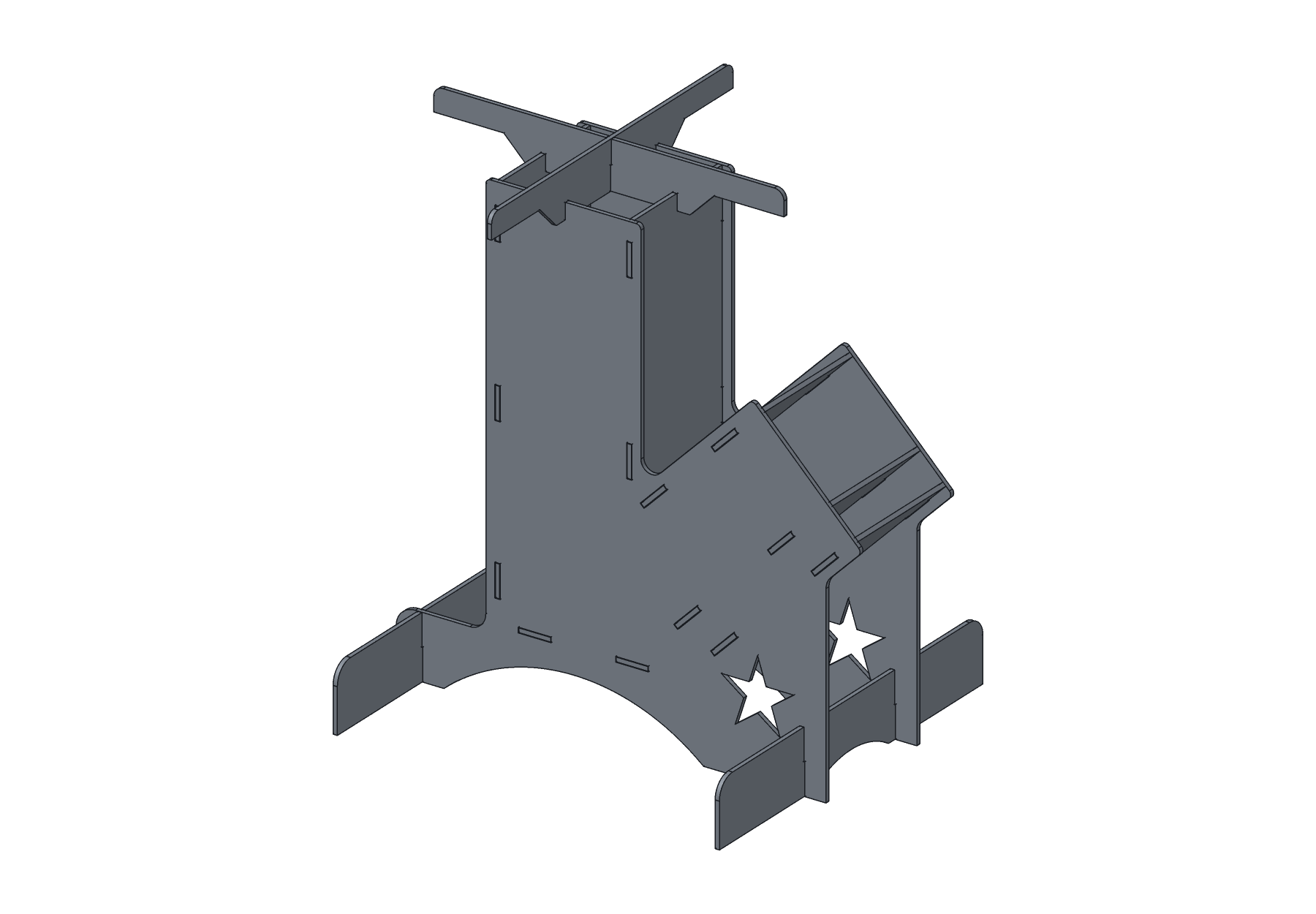

Concept imageA wood-burning rocket stove you weld yourself, for the campsite, the deer lease or the next ice storm. Twelve laser-cut 10 ga steel parts lock together with tabs and slots, so the stove holds itself square while you weld. Feed dry sticks into the sloped mouth and they slide down into a 4 x 4 in burn chamber as they burn. The flame goes straight up the riser to your pot or skillet. Cut in Greenville, Texas.
Good to knowOutdoors only. A wood fire makes carbon monoxide, so never use it in a tent, a vehicle or a garage. Set it on bare ground, gravel or stone, never on a table or a tailgate, and check fire restrictions before you light it.
Ships flat in 1 parcel box, 17 × 17 × 4 in, about 20 lb.
14-9/16 × 15 in flat, 4.7 lb each
12-3/4 × 4-1/4 in flat, 2 lb each
5-11/16 × 4-1/4 in flat, 0.9 lb each
8-5/16 × 4-1/4 in flat, 1.3 lb each
6 × 4-1/4 in flat, 0.9 lb each
7-11/16 × 4-1/4 in flat, 1.2 lb each
7-11/16 × 4-1/4 in flat, 1.2 lb each
12 × 2 in flat, 0.9 lb each
11 × 1-1/2 in flat, 0.5 lb each
11 × 1-1/2 in flat, 0.5 lb each

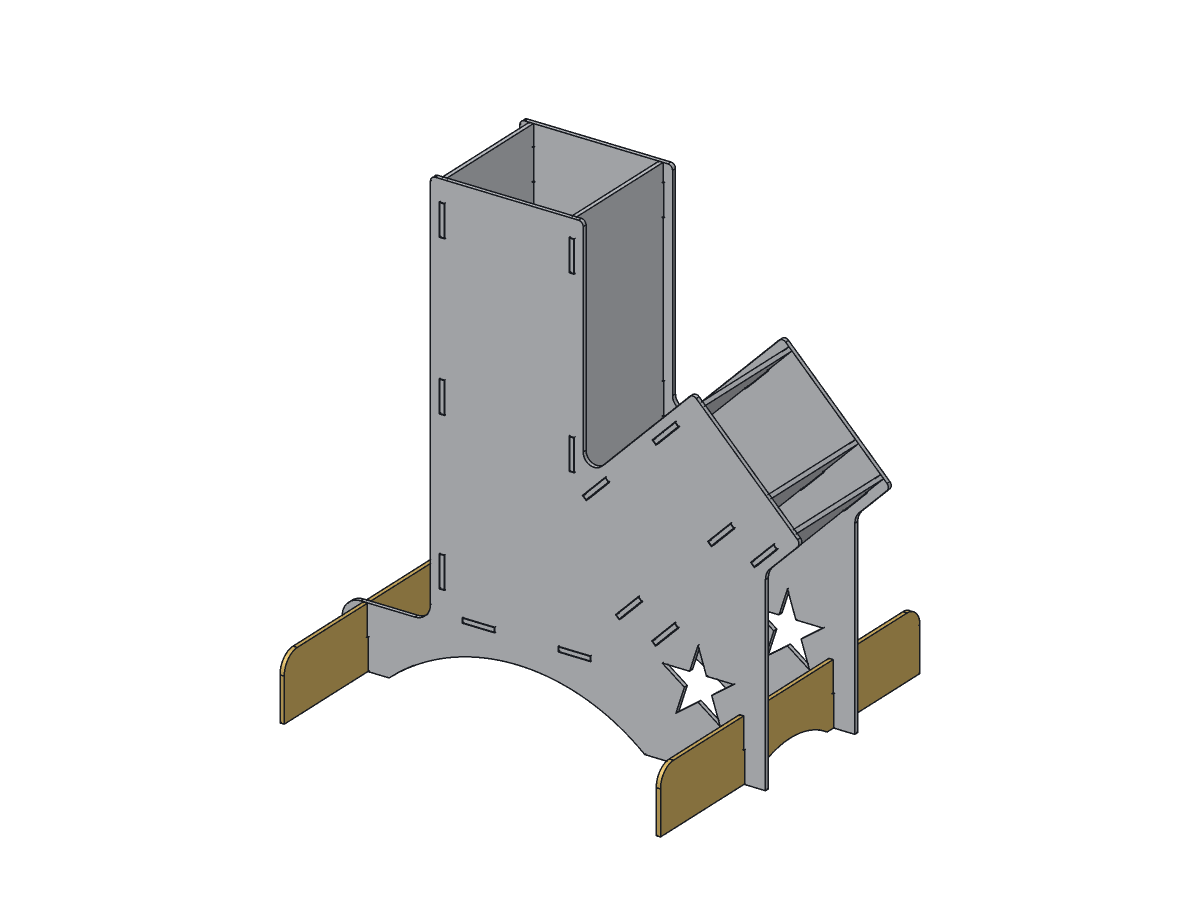

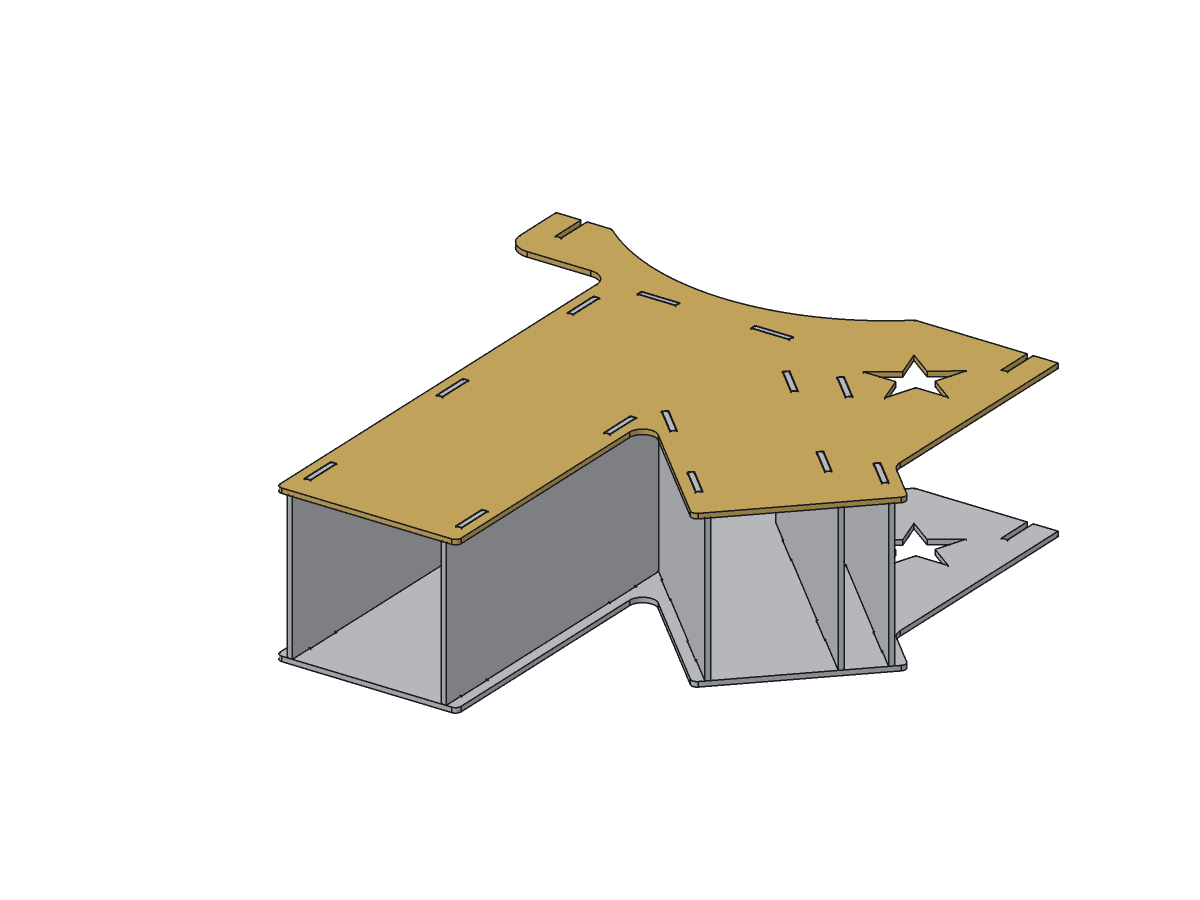

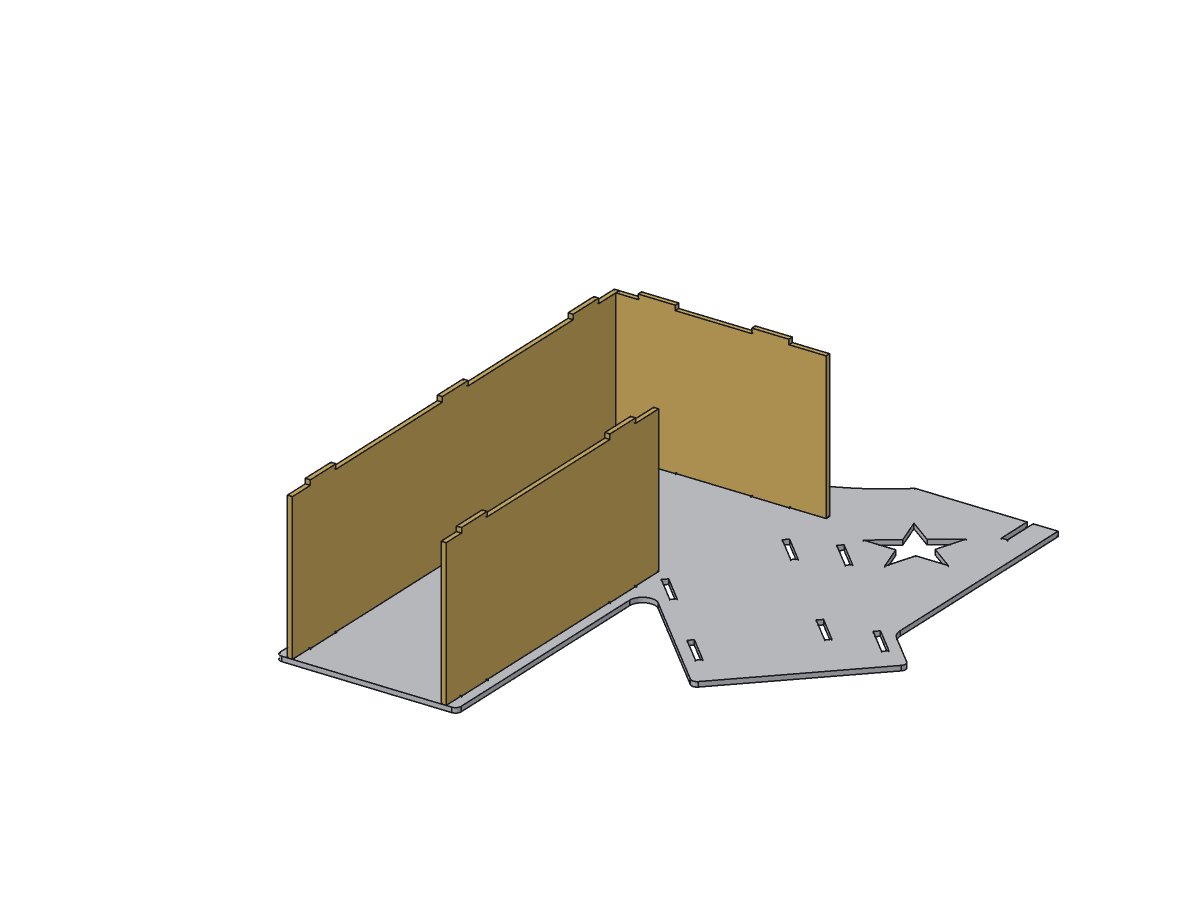

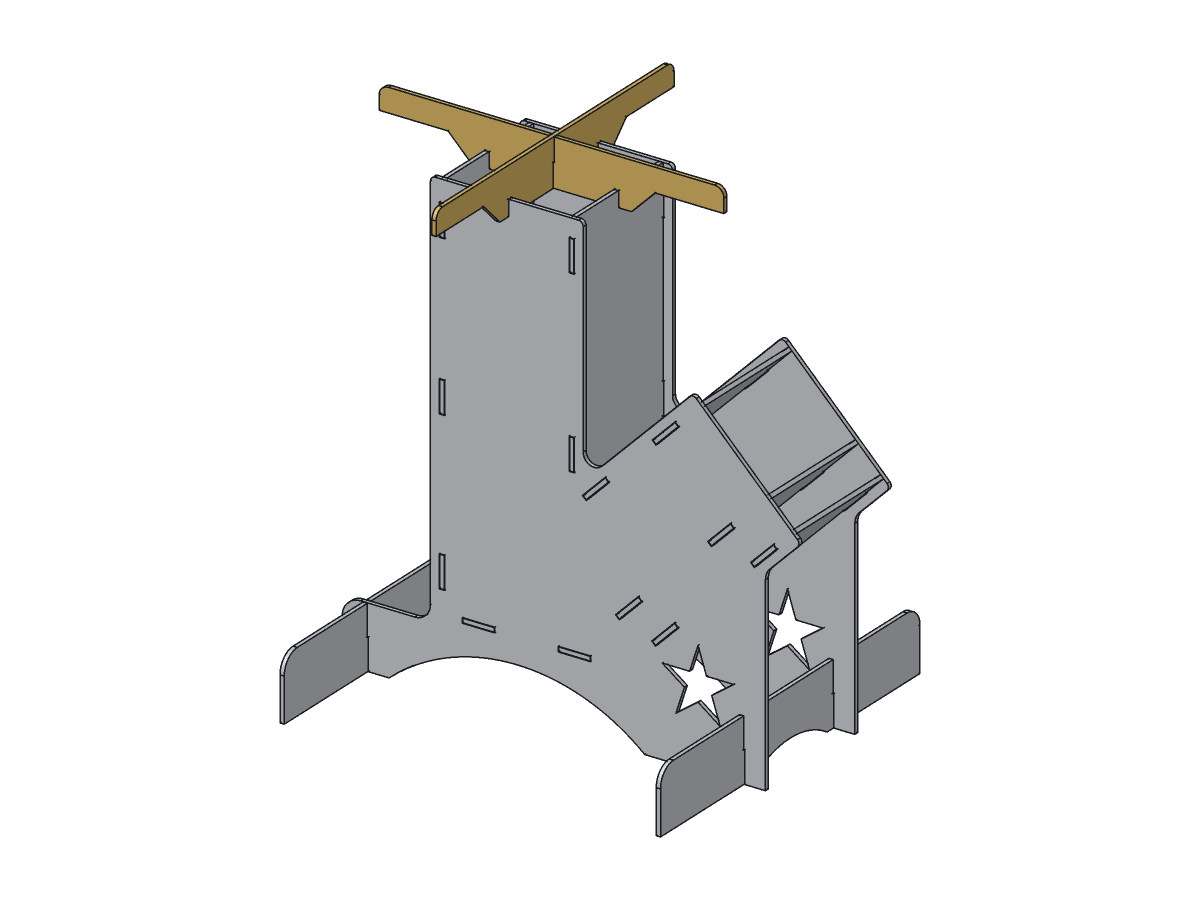

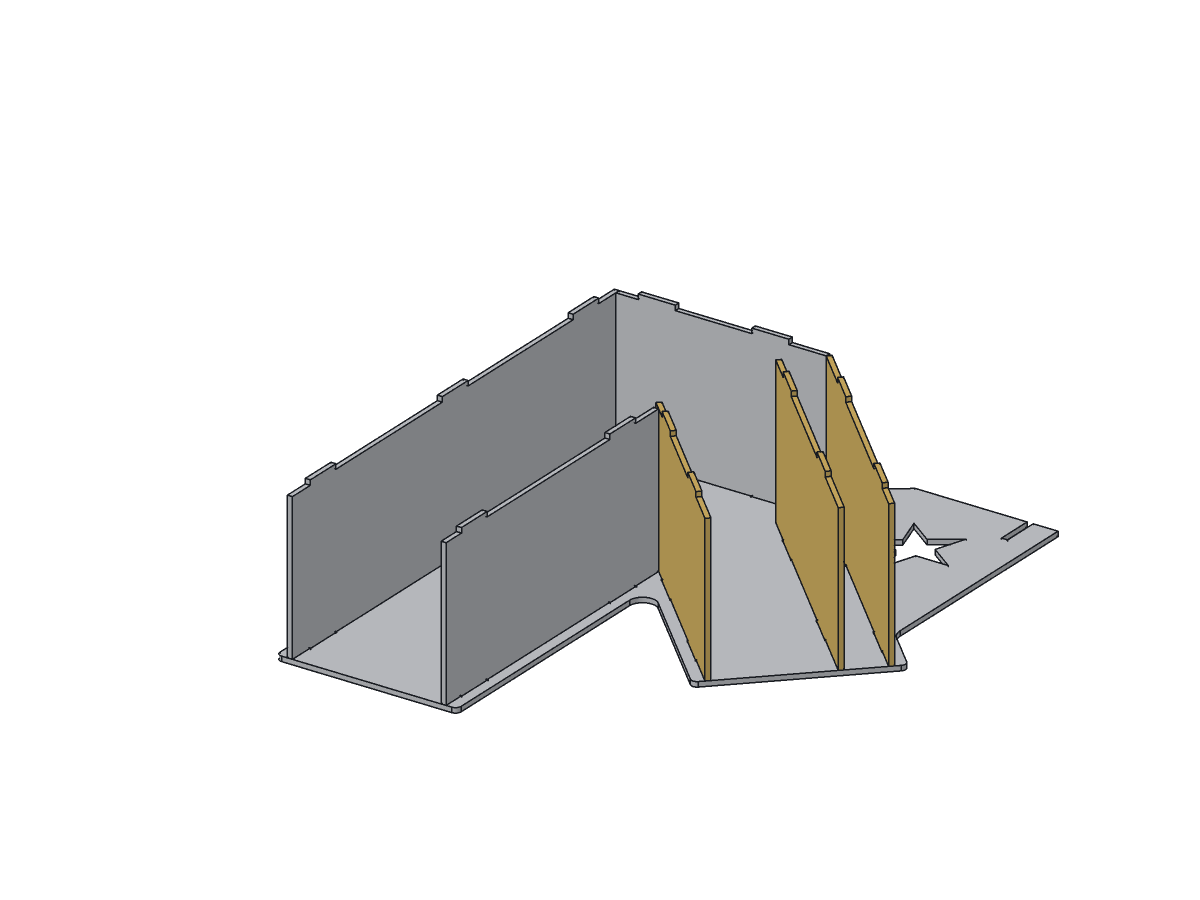

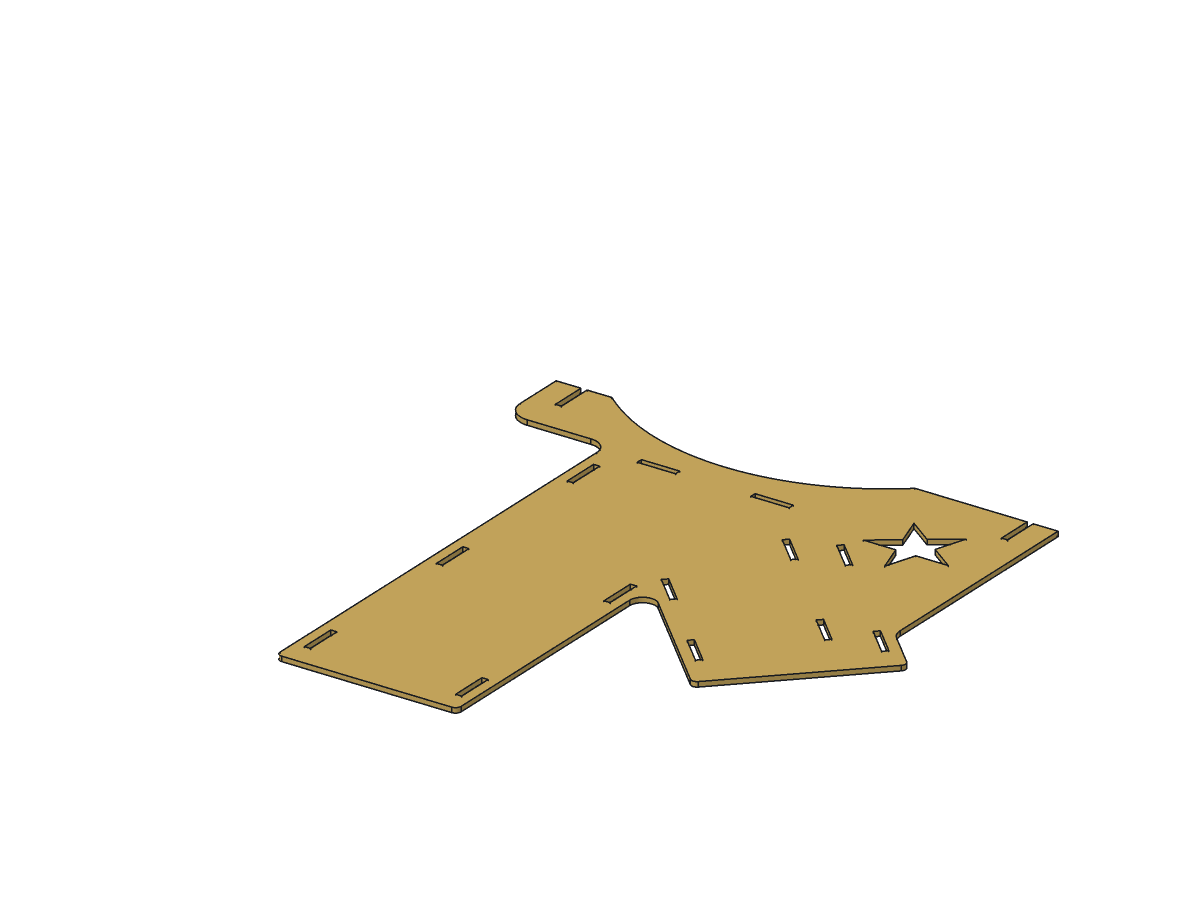

The illustrated assembly guide walks through every fit-up, tack and weld. Download the guide (PDF).
$105, laser-cut in Greenville, Texas and shipped flat in 1 parcel box. Free shipping to the lower 48; tax is added at checkout.
Concept imageA half cooking grate you weld yourself, made to sit on the FP30 Lone Star fire pit. Laser-cut 10 ga steel bars stand on edge and lock into two cross ties and two handle rails, 20 parts in all. It covers half the pit, so you can cook on one side and feed the fire on the other.
Concept image2 designs
A griddle and a pot skirt for the RS4 rocket stove, as one set you weld yourself. A 12 x 12 in 3/16 griddle plate sits on a 10 in heat box, and an eight-sided skirt wraps a pot so the flame hugs its sides. Both sit on the stove's own pot support, over a collar that seals the riser top.
Concept imageThe classic Texas barn star, in steel you weld yourself. Ten laser-cut 10 ga facets rise to a point over five ribs and a back plate, and every facet drops onto tabs that put it in exactly the right place. 18 inches across, it hangs on one screw.
