FP30 / WELD-IT-YOURSELF KIT

Lone Star Fire Pit, 30 in

Ten laser-cut steel parts that lock together and square themselves up before you strike an arc. Box-jointed corners, tab-and-slot floor and rim, and Texas star cutouts on all four sides. Cut in Greenville, Texas.

Coming soonEvery kit is prototyped and test-built before it goes on sale.

Ask about this kit Assembly guide (PDF)

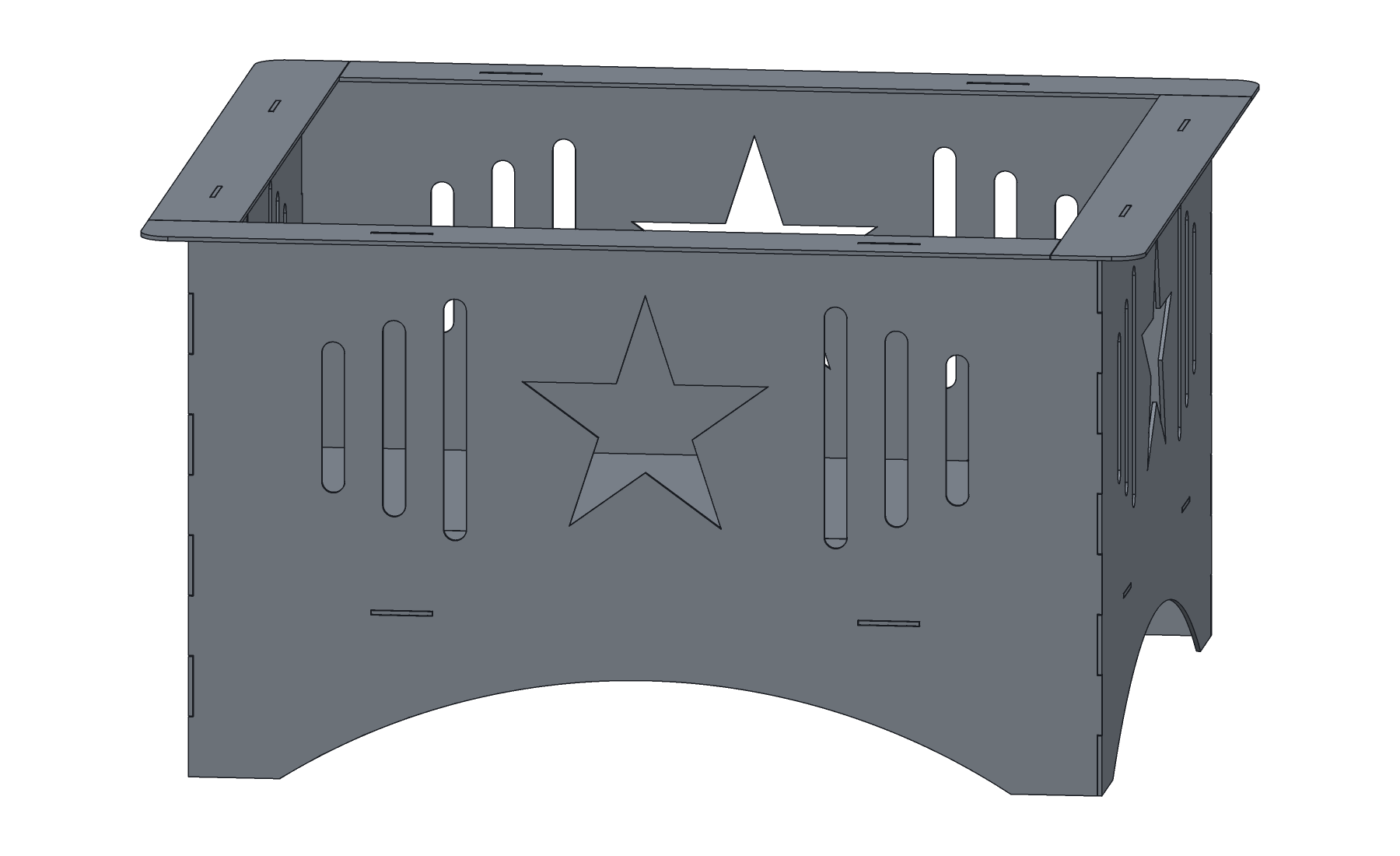

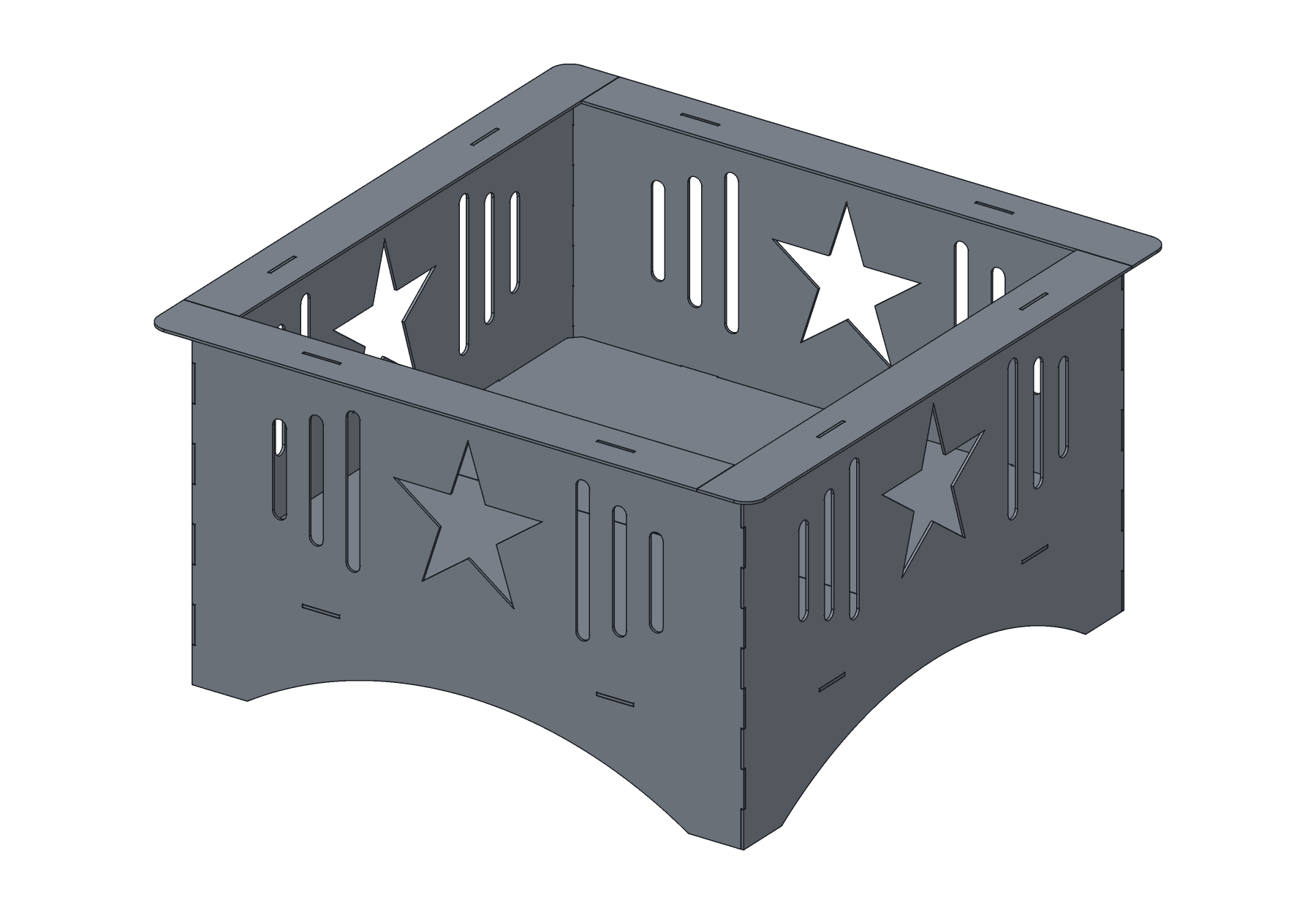

Concept image of the Lone Star Fire Pit, 30 in welded and finished, generated from the CAD design — Concept image made from the CAD design, not a photo. Prototype photos coming soon.

Concept image made from the CAD design, not a photo. Prototype photos coming soon.

Built size: 33 × 33 × 18-1/8 in
Kit weight: 113 lb
Laser-cut parts: 10
Steel: 10 ga (0.135 in) hot-rolled steel
Ships in: 3 parcel boxes

THE KIT / FP30

What you get

Good to knowOutdoor use only. Use on a non-combustible surface, at least 10 ft from structures. Check local burn bans.

30 in square body, 33 in cap rim, 18 in tall. The floor sits 5-1/2 in off the ground on arched legs.
10 ga (0.135 in) pickled-and-oiled steel. It paints clean, or you can let it rust to a patina.
Self-fixturing: two 2x6 boards set the floor height, so you don't need a fixture table.
Weldable with a 120 V MIG or flux-core machine. Includes an illustrated assembly guide.
Ships flat in three boxes.

IN THE BOX / 10 LASER-CUT PARTS

What’s in the box

Ships flat in 3 parcel boxes, 32 × 21 × 3 in, 38–41 lb each.

×4

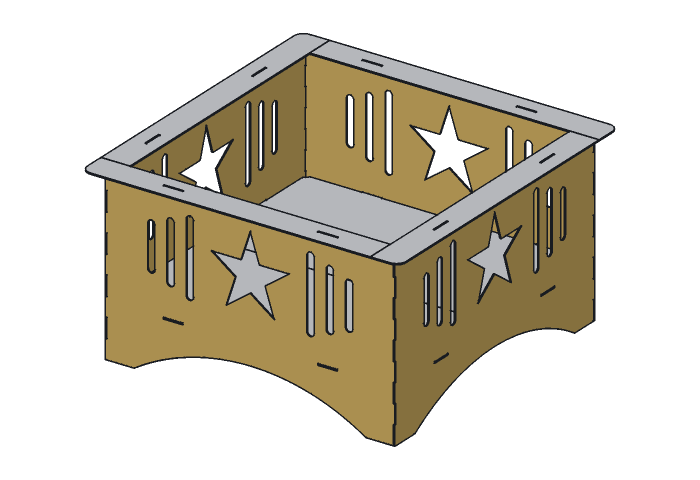

Side panel
FP30-01
30 × 18-1/8 in flat, 16.5 lb each
×2

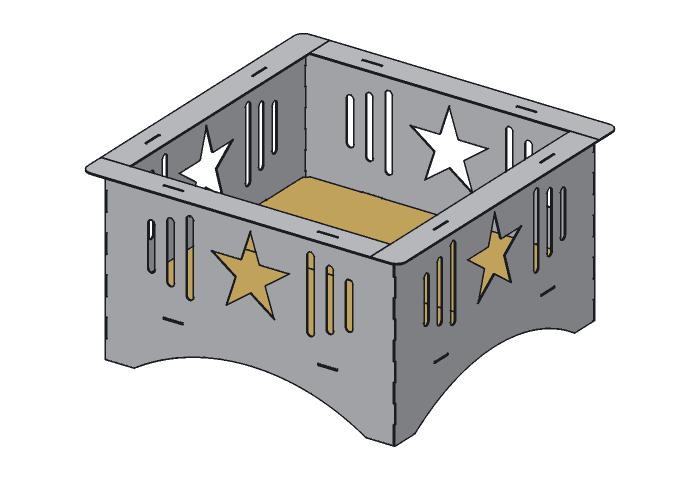

Floor half
FP30-02
30 × 15 in flat, 16.9 lb each
×4

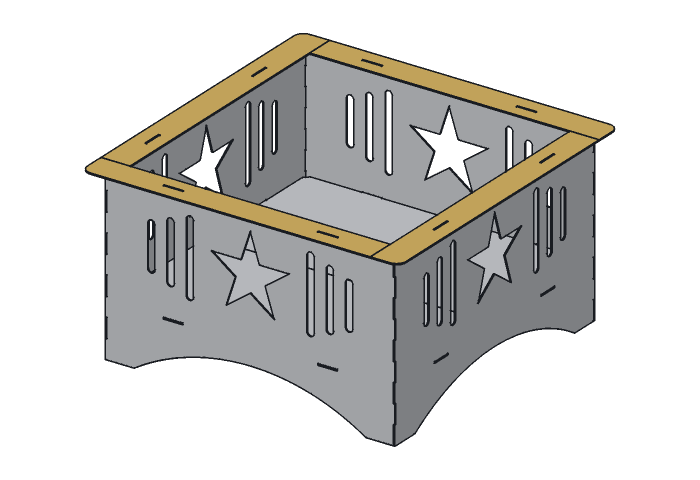

Rim strip
FP30-03
30 × 3 in flat, 3.4 lb each

ASSEMBLY / 6 STEPS

How it goes together

The illustrated assembly guide walks through every fit-up, tack and weld. Download the guide (PDF).

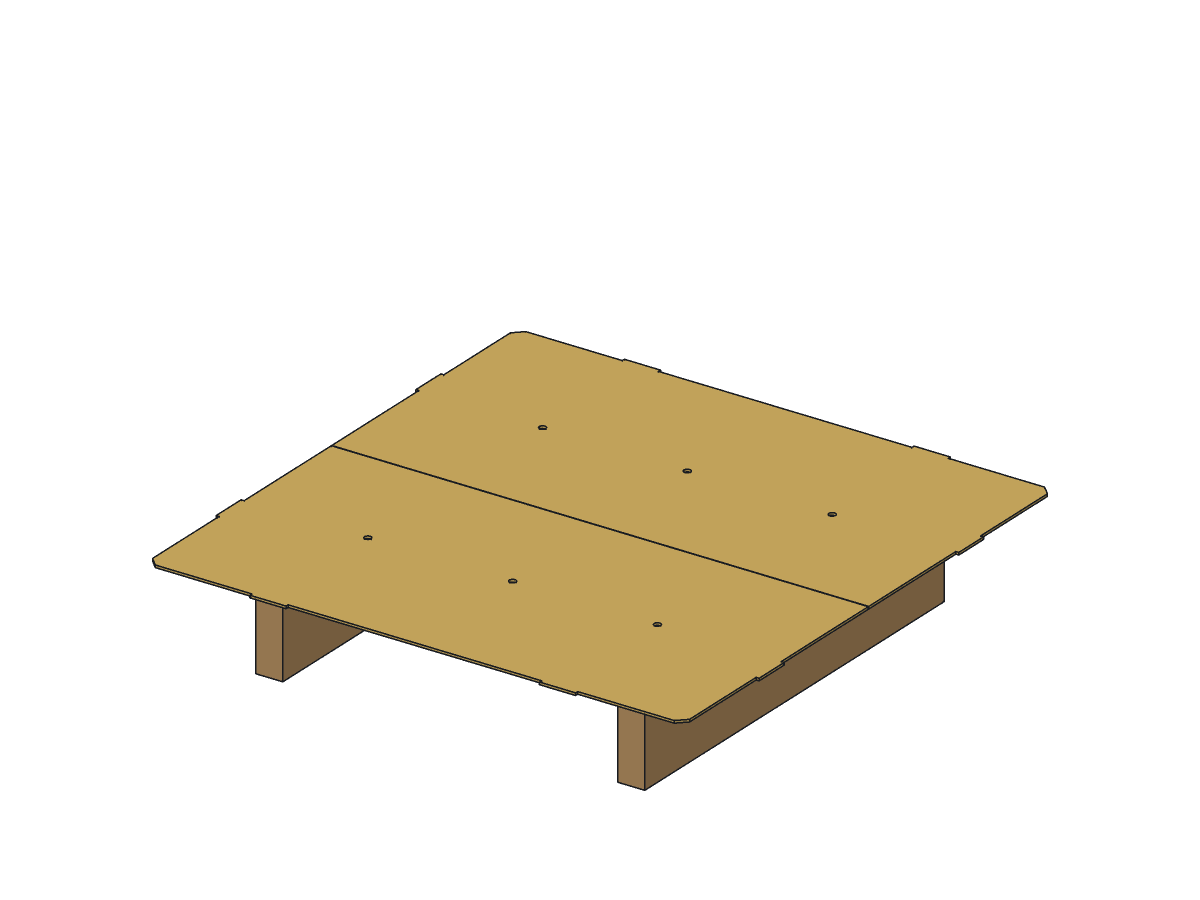

STEP 1

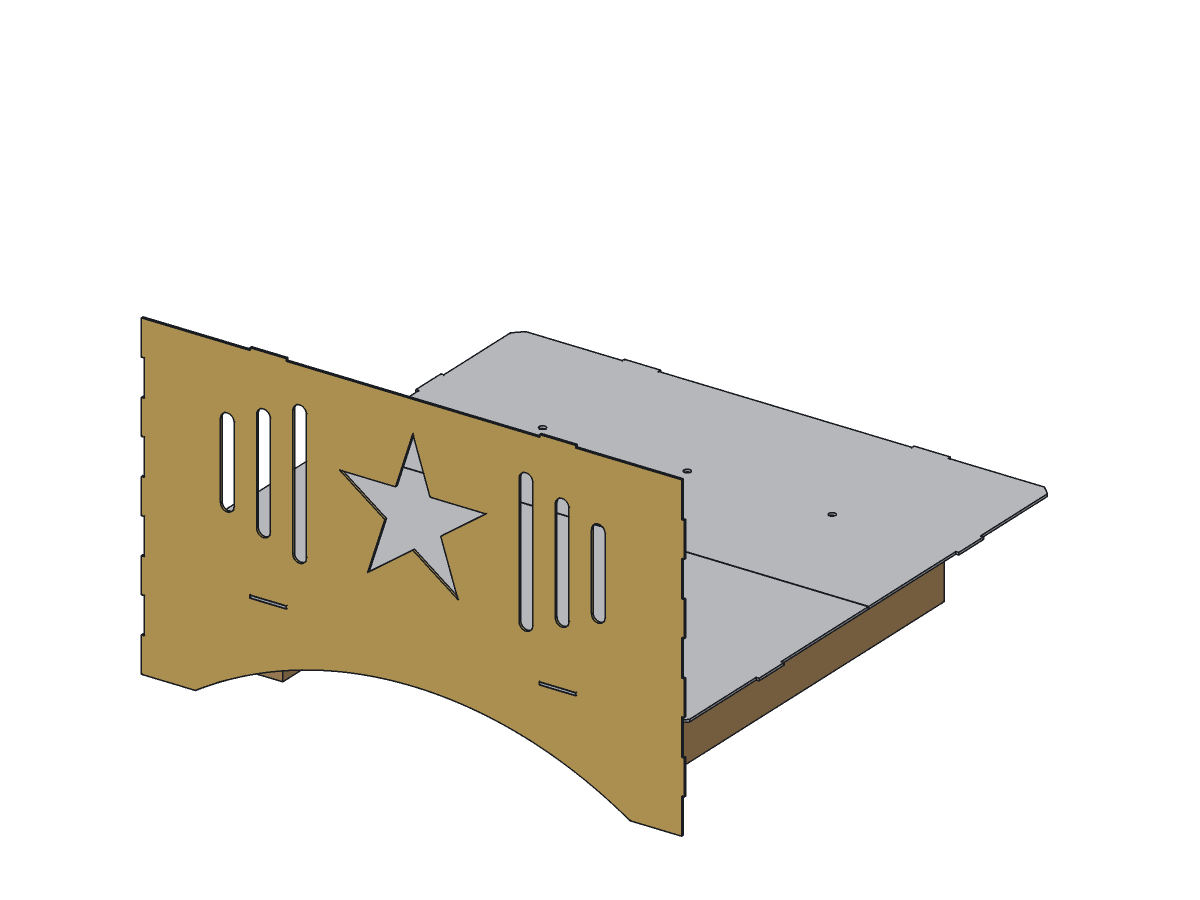

STEP 2

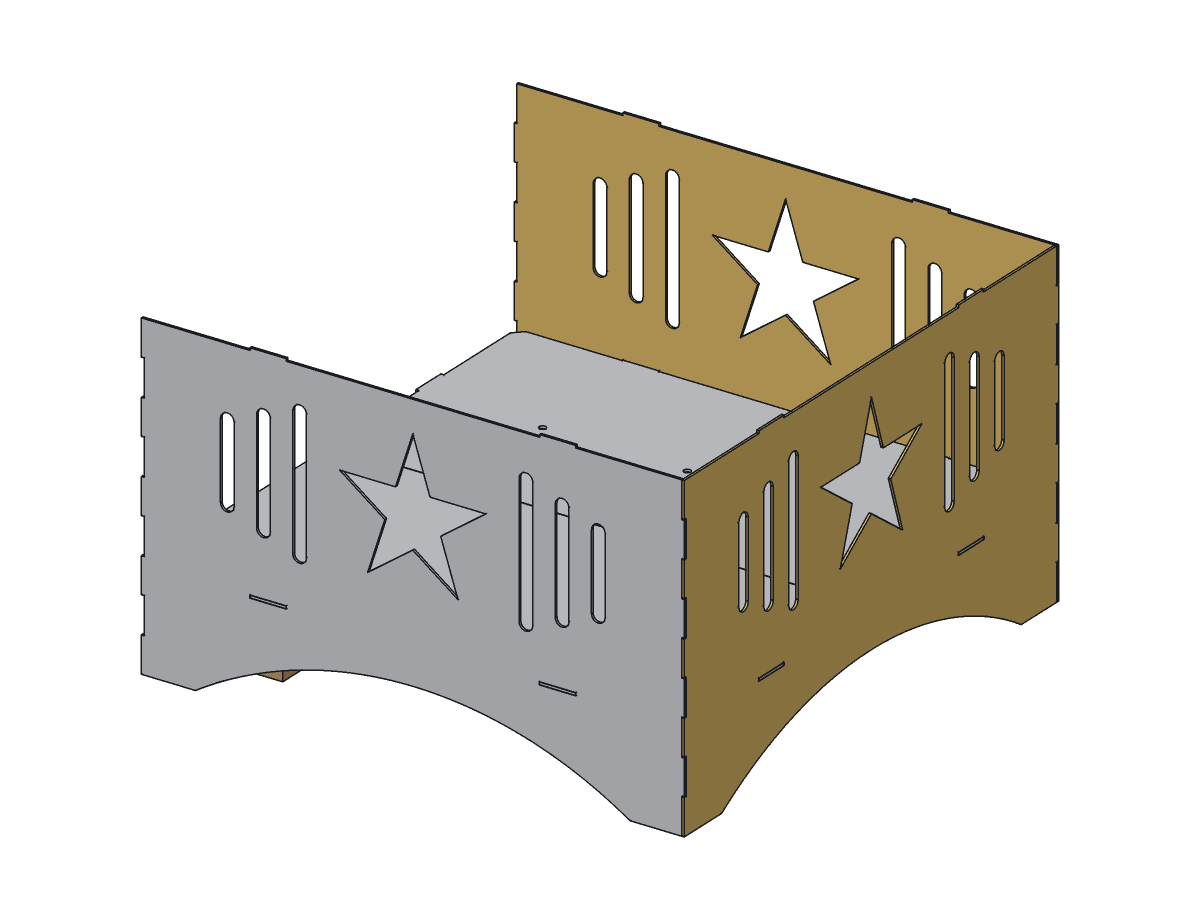

STEP 3

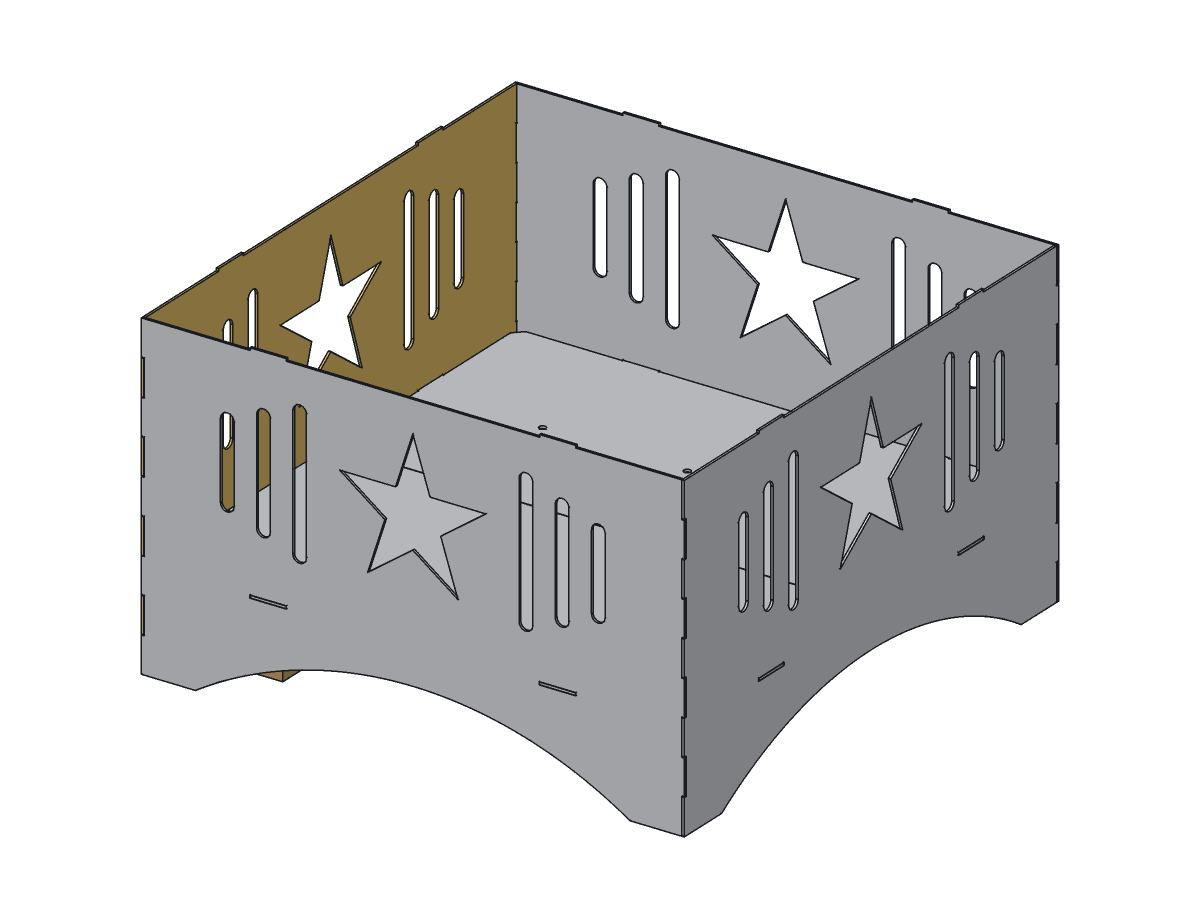

STEP 4

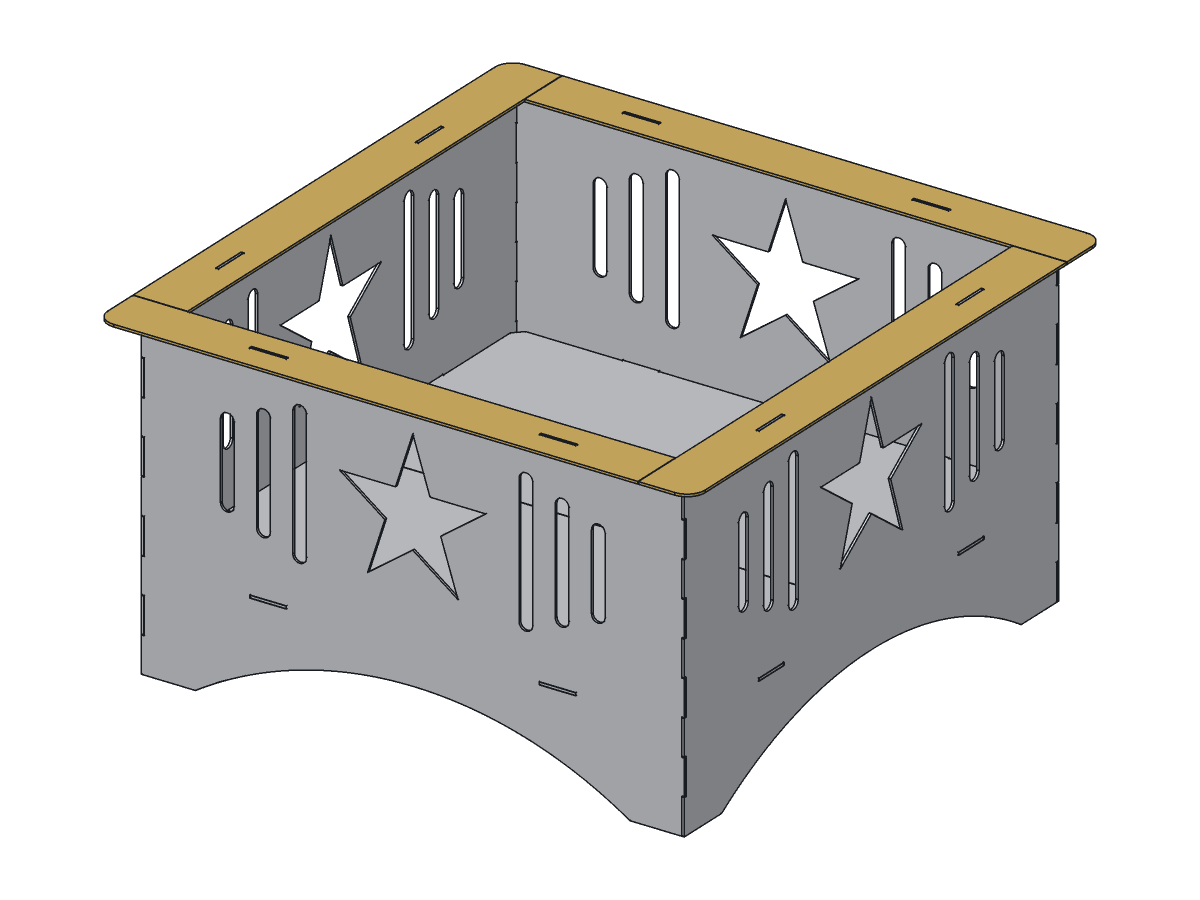

STEP 5

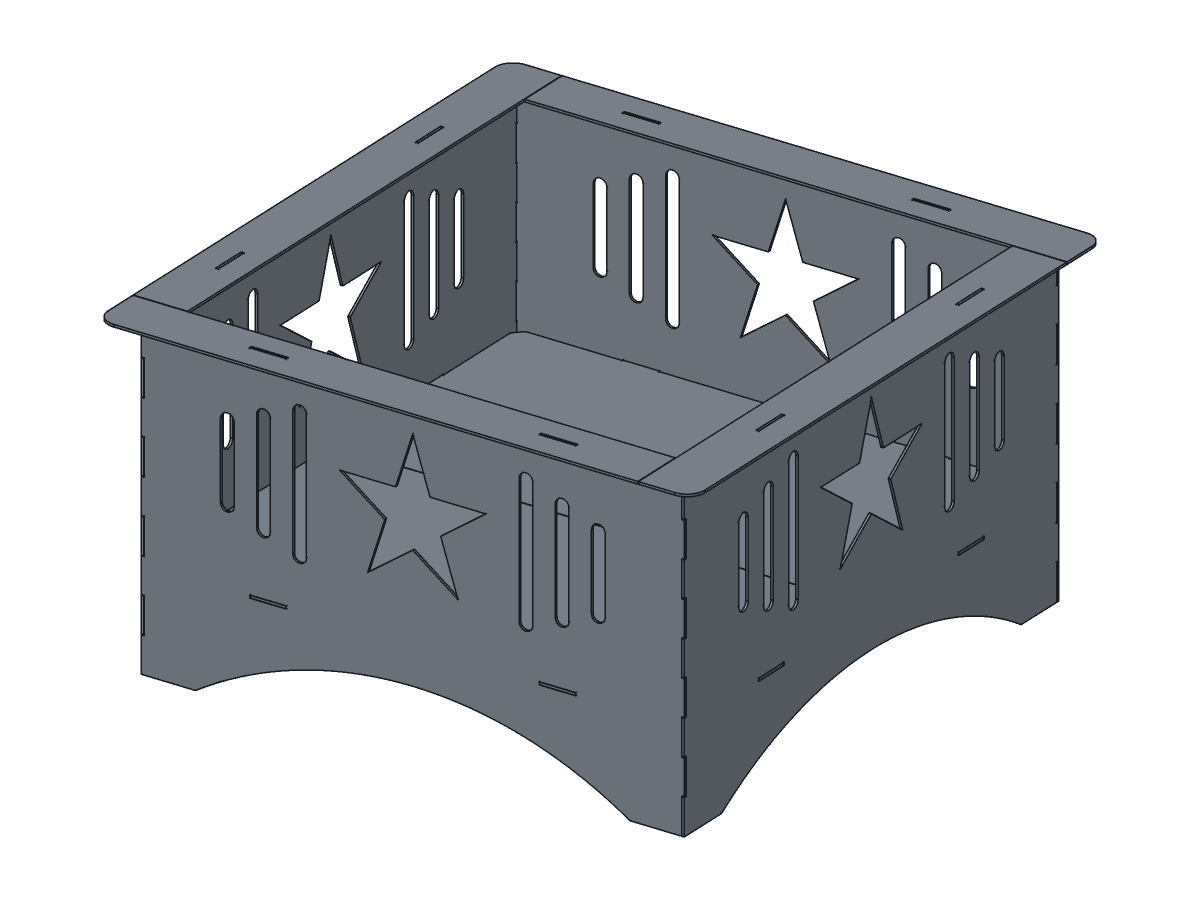

STEP 6

What you’ll need

MIG or flux-core welder (a 120 V machine handles 10 ga)
Angle grinder with a flap disc and wire wheel
Four or more clamps (corner clamps or F-clamps)
Framing square and tape measure
Rubber mallet and a flat file
Two 2x6 boards, at least 24 in long
Welding helmet, gloves, jacket and safety glasses

Finishing

The parts ship bare with a light oil film. Wipe them down with a degreaser before welding.
Grind off weld spatter, then sand or wire-wheel the outside surfaces you plan to paint.
Paint the outside with a high-heat paint rated to 1200 F, in two or three thin coats.
Leave the inside bare. A fire will burn paint off the inside, and bare steel there is normal.
Or skip paint entirely and let it weather to a natural rust patina.

Safety

Use outdoors only, at least 10 ft from buildings, fences, overhangs and trees.
Set it on a non-combustible surface such as pavers, gravel or bare soil, never a wood deck or dry grass.
Check local burn rules and county burn bans before every fire.
The steel gets hot enough to burn skin. Keep kids and pets back.
Keep a hose or extinguisher nearby, and drown the fire completely before you leave it.

COMING SOON

Want one?

Tell us you’re interested in this kit and our team will follow up when it’s ready. No account needed.

Ask about this kit
