OF20 / FLAT-PACK KIT

Lone Star Overland Fire Pan, 20 in

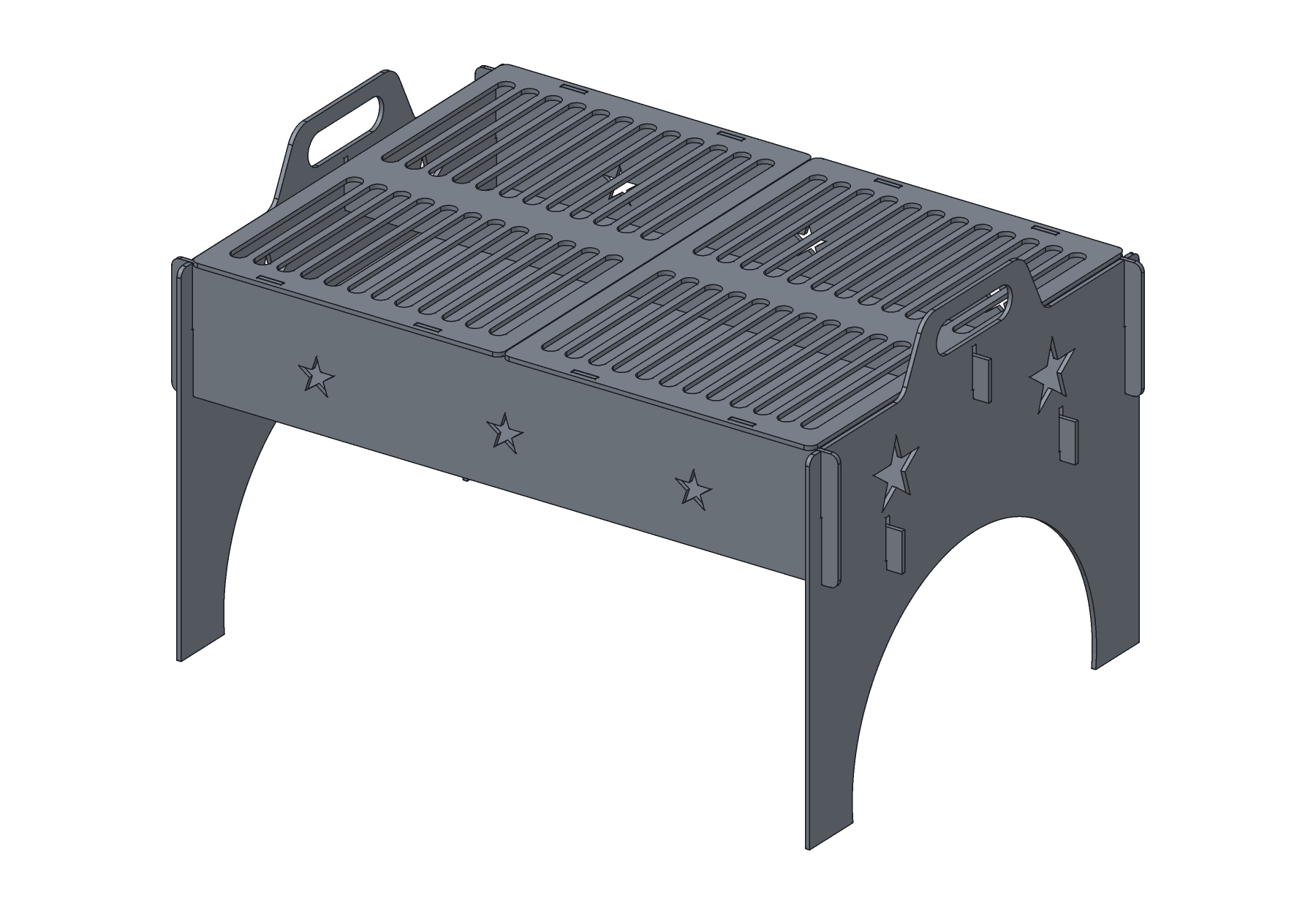

Concept image of the Lone Star Overland Fire Pan, 20 in assembled and finished, generated from the CAD designConcept image
Concept image made from the CAD design, not a photo. Prototype photos coming soon.

A raised fire pan for campsites with no fire ring. The fire burns on a solid steel floor 8 in off the ground, so the ground underneath stays unscorched and the cold ashes pack out. Ten 10 ga steel parts slot together in a couple of minutes with no tools and no welding, and come apart into a stack less than 1-1/2 in thick. Two half grates sit on the rim for cooking over the coals. Cut in Greenville, Texas.

$179Free shipping to the lower 48.
Tax is added at checkout.
Ask about this kit Assembly guide (PDF)
Built size
21-3/16 × 15-3/16 × 13-3/8 in
Kit weight
35 lb
Laser-cut parts
10
Steel
10 ga (0.135 in) hot-rolled steel
Ships in
1 parcel box
THE KIT / OF20

What you get

Good to knowOutdoors only, on level bare ground or gravel; never on a deck, a table or a truck bed. A fire pan doesn't make a fire legal where fires are banned: check the rules before every fire.

IN THE BOX / 10 LASER-CUT PARTS

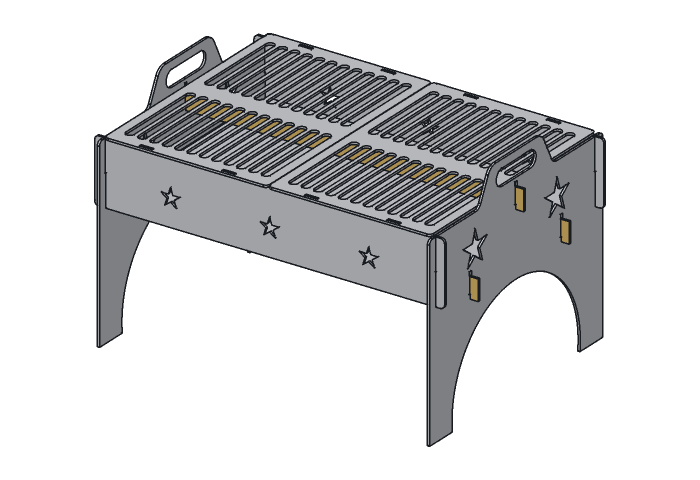

What’s in the box

Ships flat in 1 parcel box, 24 × 16 × 4 in, about 36 lb.

ASSEMBLY / 4 STEPS

How it goes together

The illustrated assembly guide walks through every fit-up, tack and weld. Download the guide (PDF).

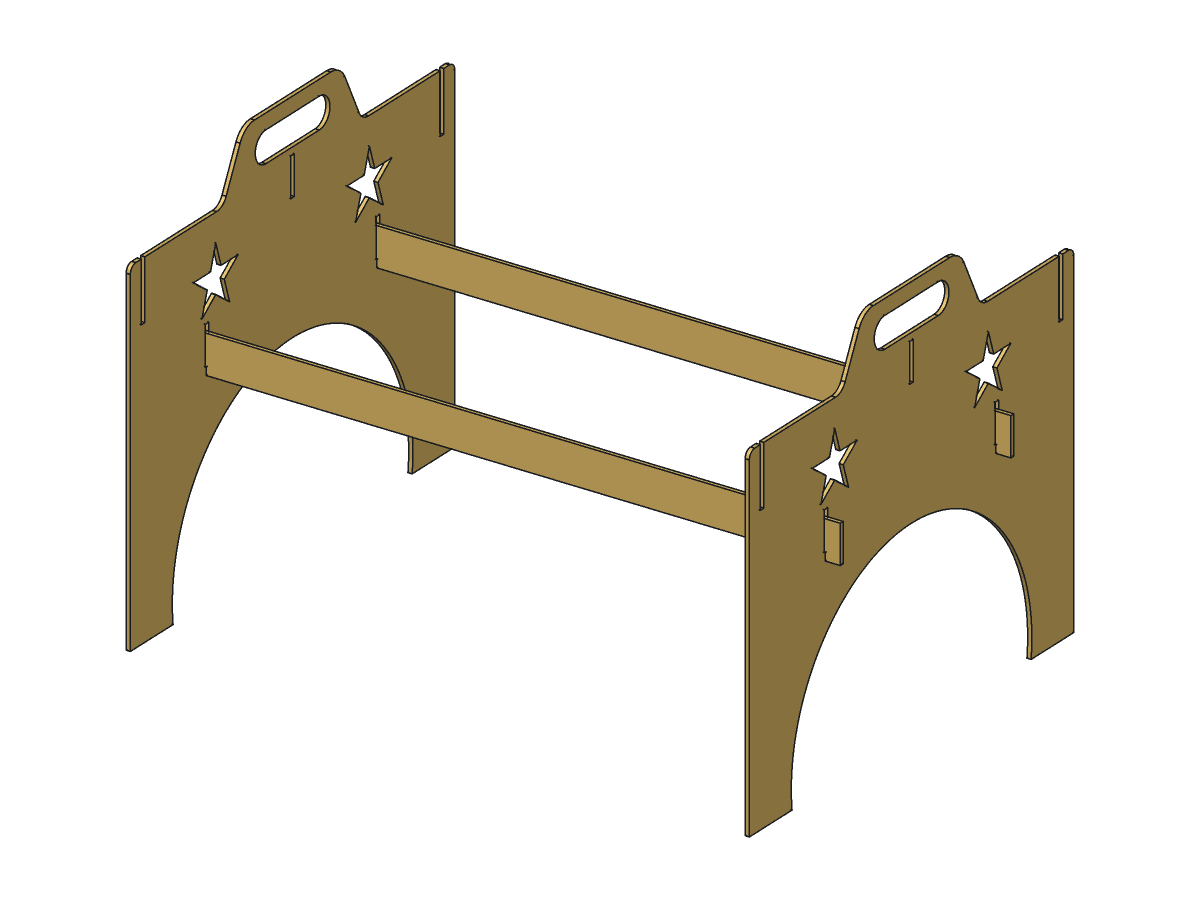

  1. Lone Star Overland Fire Pan, 20 in, assembly step 1
    STEP 1

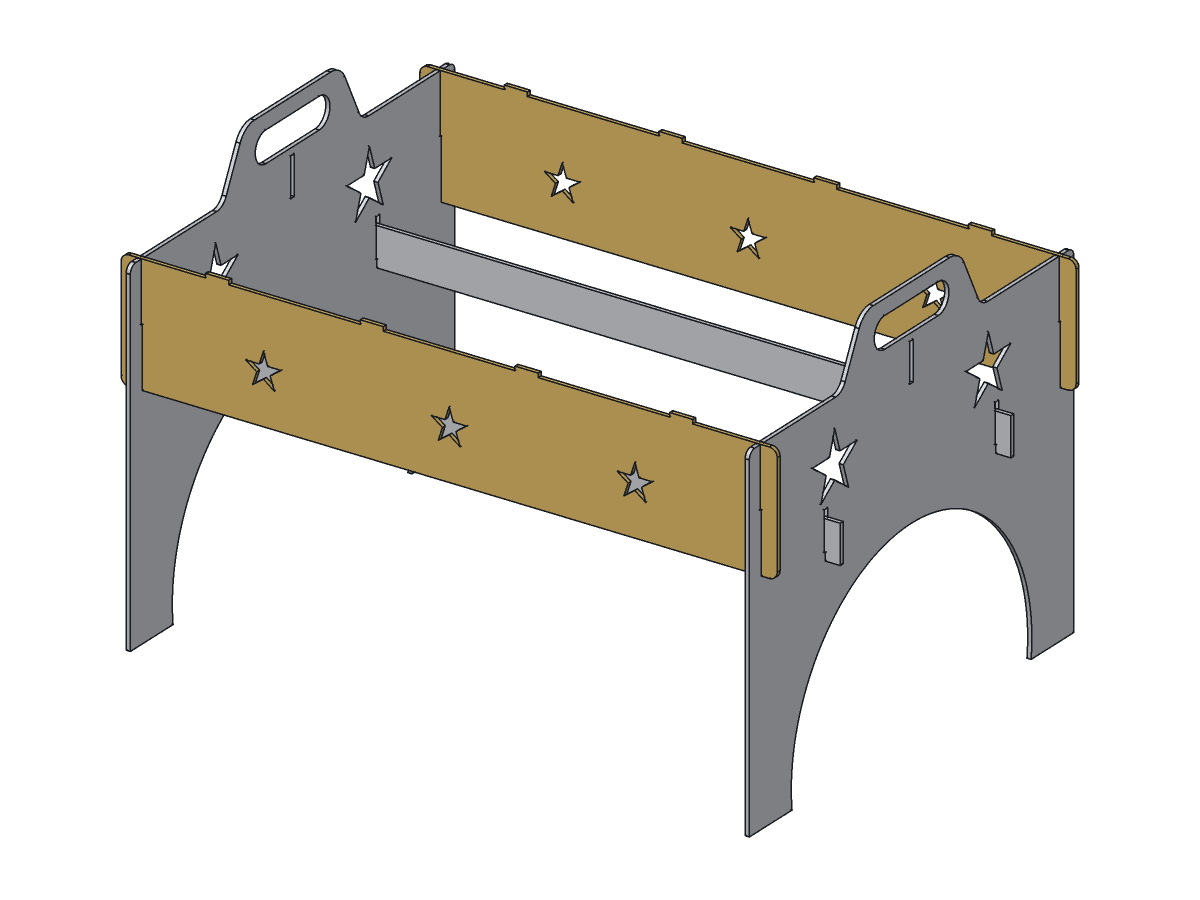

  2. Lone Star Overland Fire Pan, 20 in, assembly step 2
    STEP 2

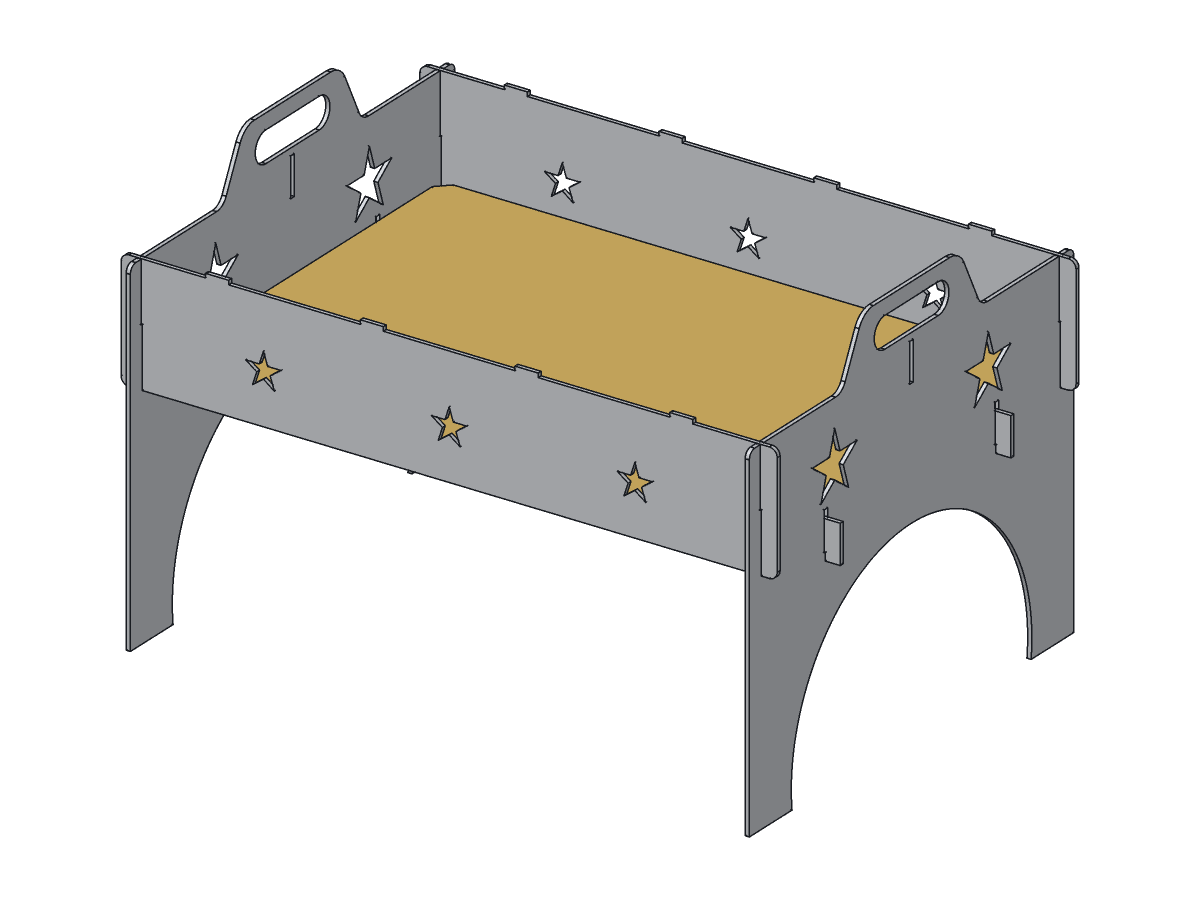

  3. Lone Star Overland Fire Pan, 20 in, assembly step 3
    STEP 3

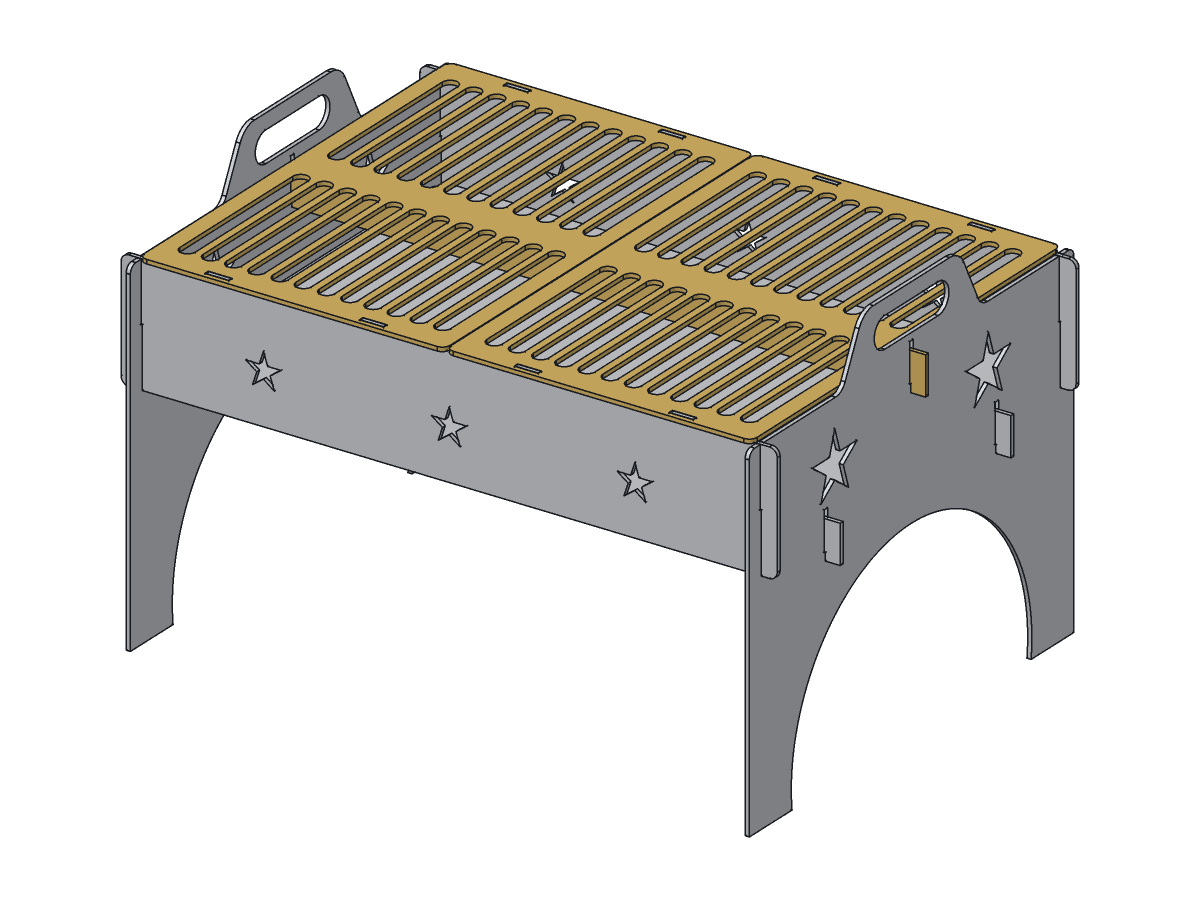

  4. Lone Star Overland Fire Pan, 20 in, assembly step 4
    STEP 4

What you’ll need

  • No tools needed
  • Heat-resistant gloves for the grates
  • A small shovel or scoop and a metal can for cold ashes (recommended)

Finishing

  • The parts ship bare with a light oil film. Wash the grates with soap and water before the first cook.
  • Season the grates like cast iron: a thin coat of high-smoke-point oil, heated over coals until it stops smoking.
  • Leave the pan bare to patina, or paint the outsides of the end panels and side walls with 1200 F high-heat paint.
  • Store it taken apart and dry, with a light coat of oil on the grates.

Safety

  • Outdoors only. Never use it under an awning, a tent fly or low branches.
  • Set it on level bare ground, gravel or rock, clear of dry grass. Never use it on a deck, a table, a tailgate or a truck bed.
  • Burn dry wood or charcoal only. Never use gasoline, and never add lighter fluid to a lit fire.
  • Keep the fire inside the pan and below the rim. Don't overload it with long logs that hang over the edge.
  • Everything gets hot enough to burn. Don't move it while lit, and keep kids and pets back.
  • Check fire restrictions and burn bans before every fire; a fire pan doesn't make a fire legal where fires are banned.
  • Put the fire dead out with water and stir it. Pack out the cold ashes where the rules ask you to.
ORDER / OF20

Ready to build?

$179, laser-cut in Greenville, Texas and shipped flat in 1 parcel box. Free shipping to the lower 48; tax is added at checkout.
