WS4 / WELD-IT-YOURSELF KIT

Weld Starter Kit with Lone Star Die

Fourteen laser-cut 10 ga steel parts take you from your first bead to a finished keepsake. Practice the butt, lap, T and outside corner joints, then build a 4-inch steel die with a Lone Star for the one. Cut in Greenville, Texas.

Coming soonEvery kit is prototyped and test-built before it goes on sale.

Ask about this kit Assembly guide (PDF)

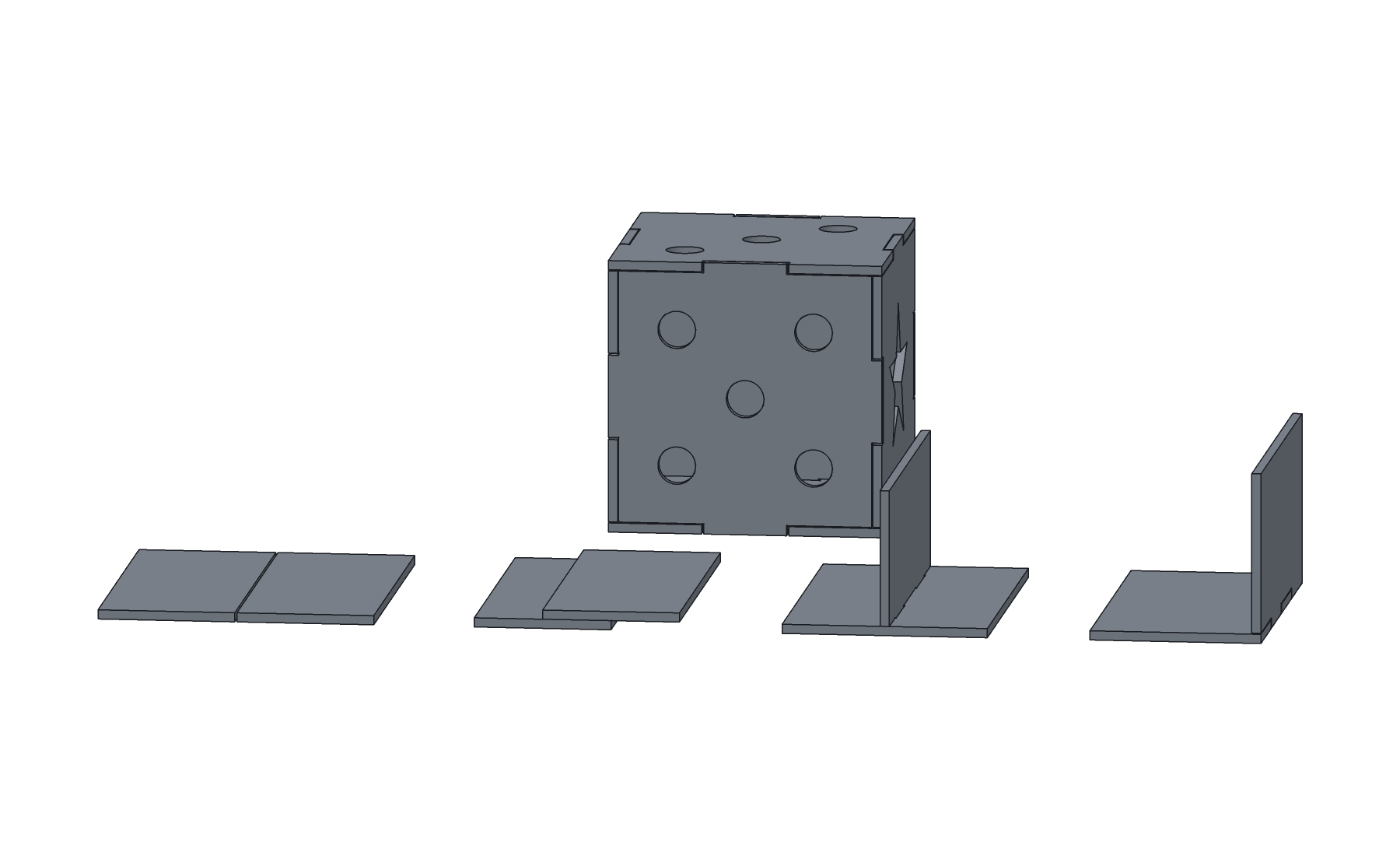

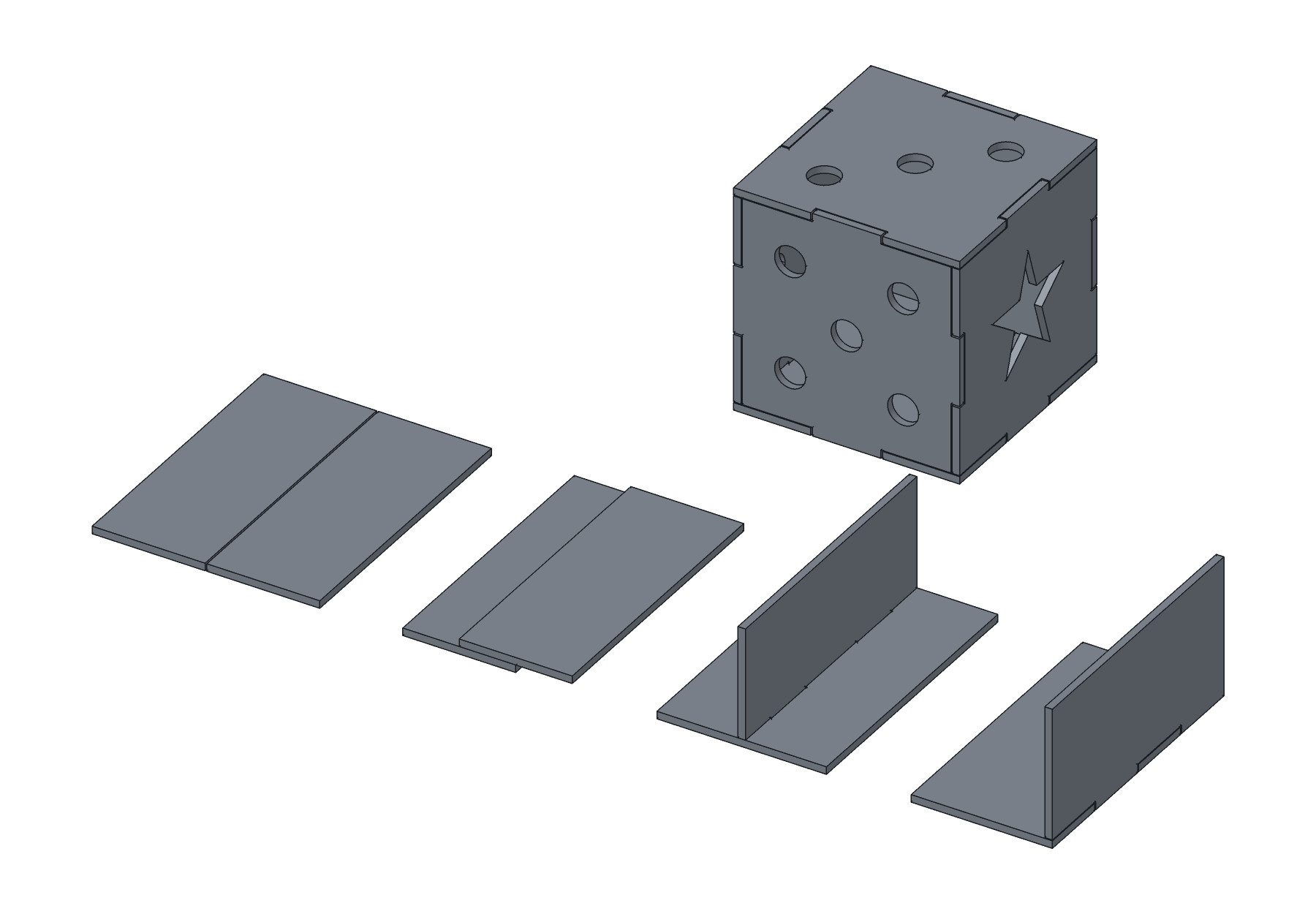

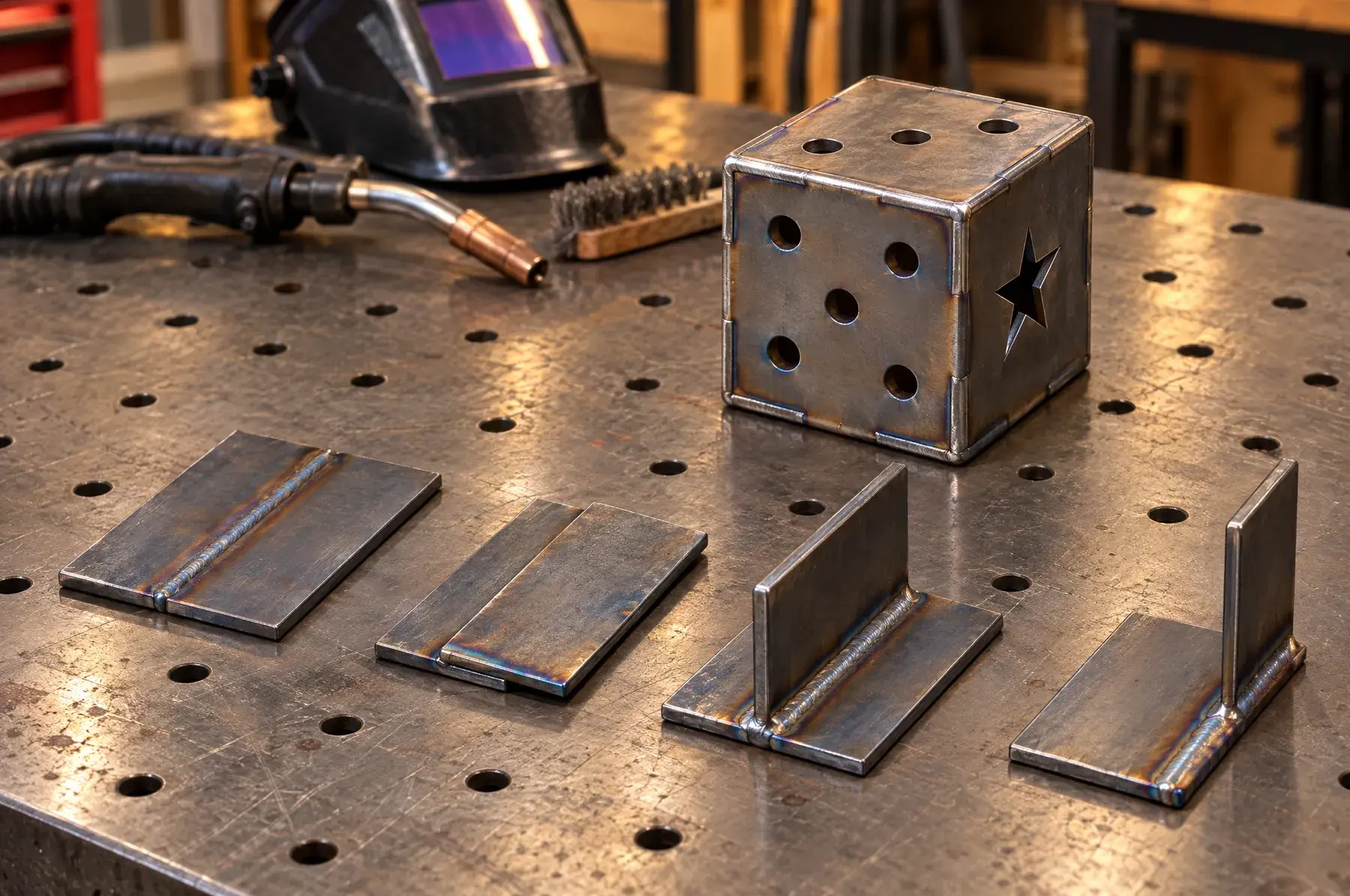

Concept image of the Weld Starter Kit with Lone Star Die welded and finished, generated from the CAD designConcept image
Concept image made from the CAD design, not a photo. Prototype photos coming soon.
Projects
5 builds in one box
Kit weight
6.6 lb
Laser-cut parts
14
Steel
10 ga (0.135 in) hot-rolled steel
Ships in
1 parcel box
THE KIT / WS4

What you get

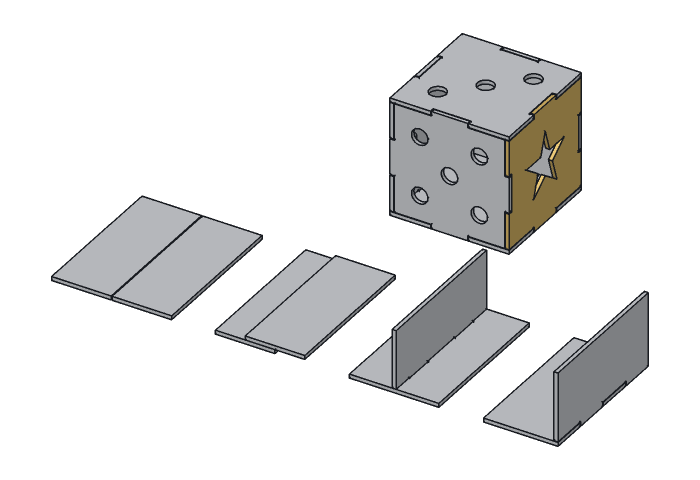

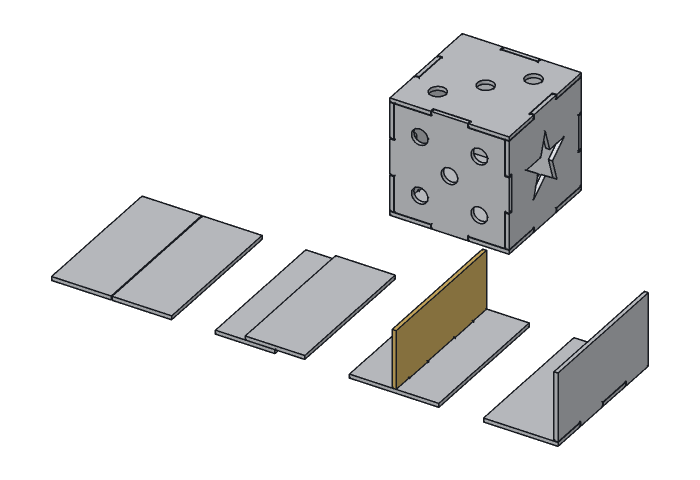

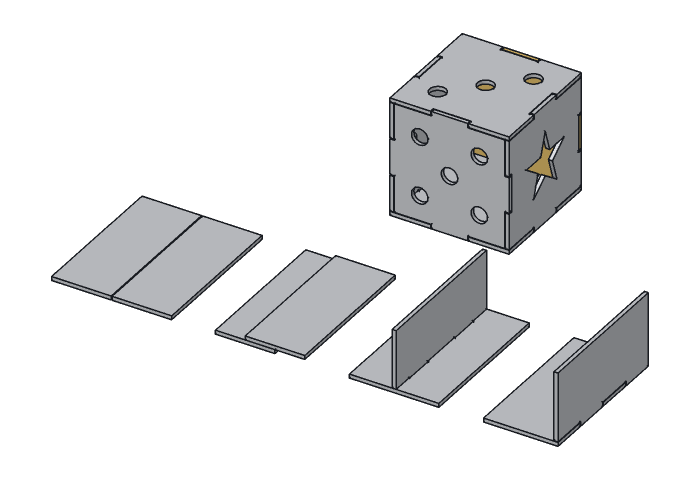

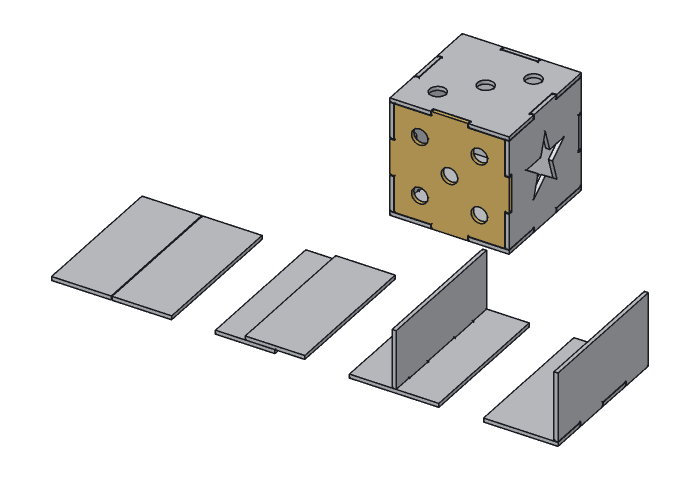

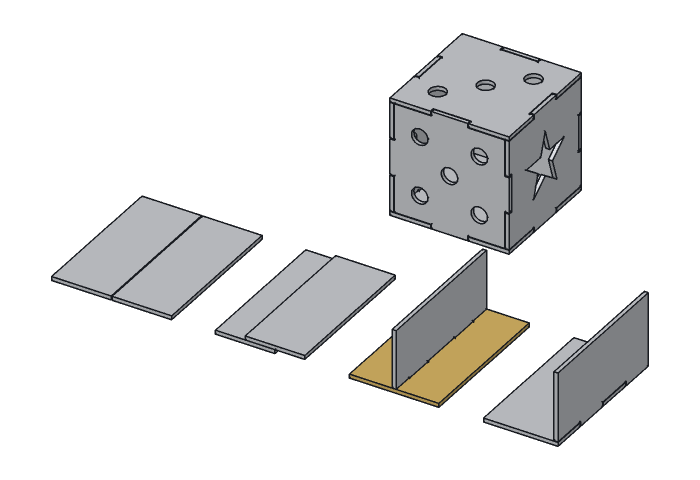

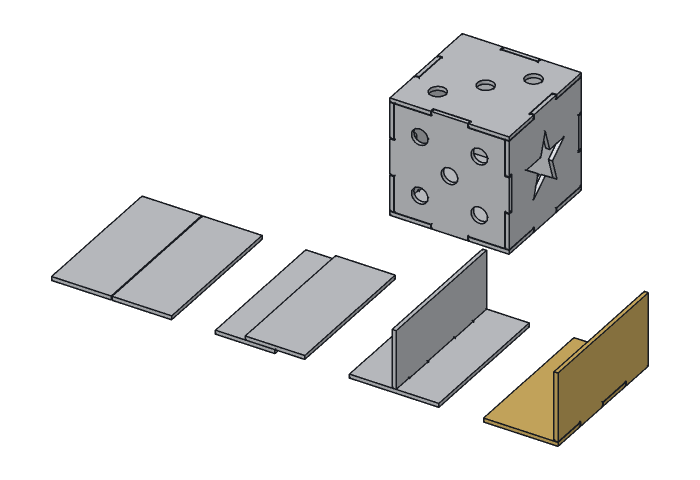

IN THE BOX / 14 LASER-CUT PARTS

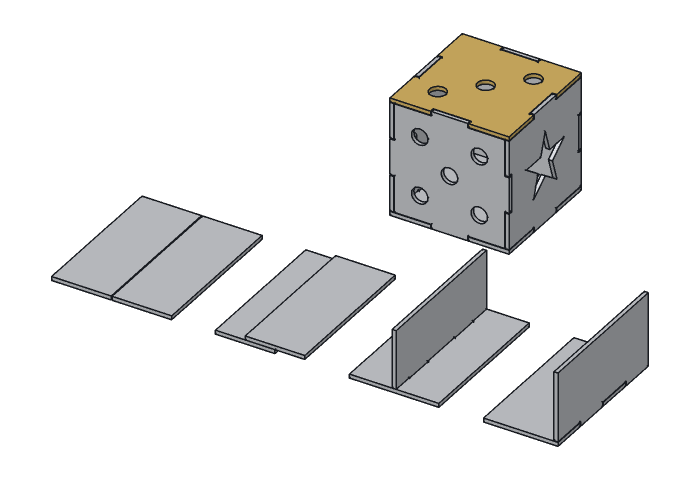

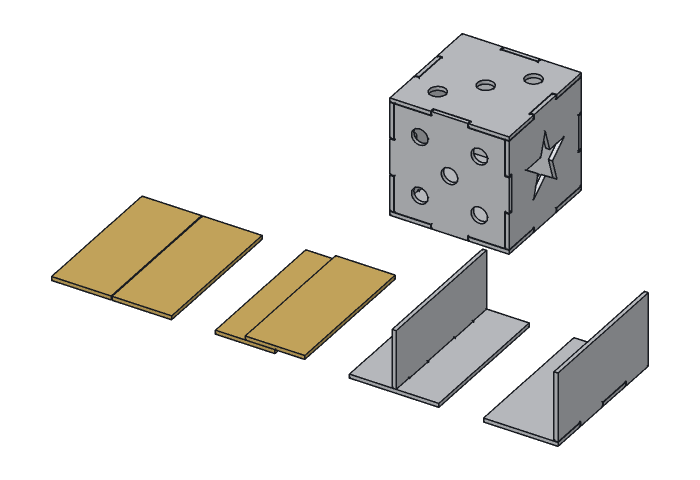

What’s in the box

Ships flat in 1 parcel box, 7 × 6 × 4 in, about 6.7 lb.

ASSEMBLY / 6 STEPS

How it goes together

The illustrated assembly guide walks through every fit-up, tack and weld. Download the guide (PDF).

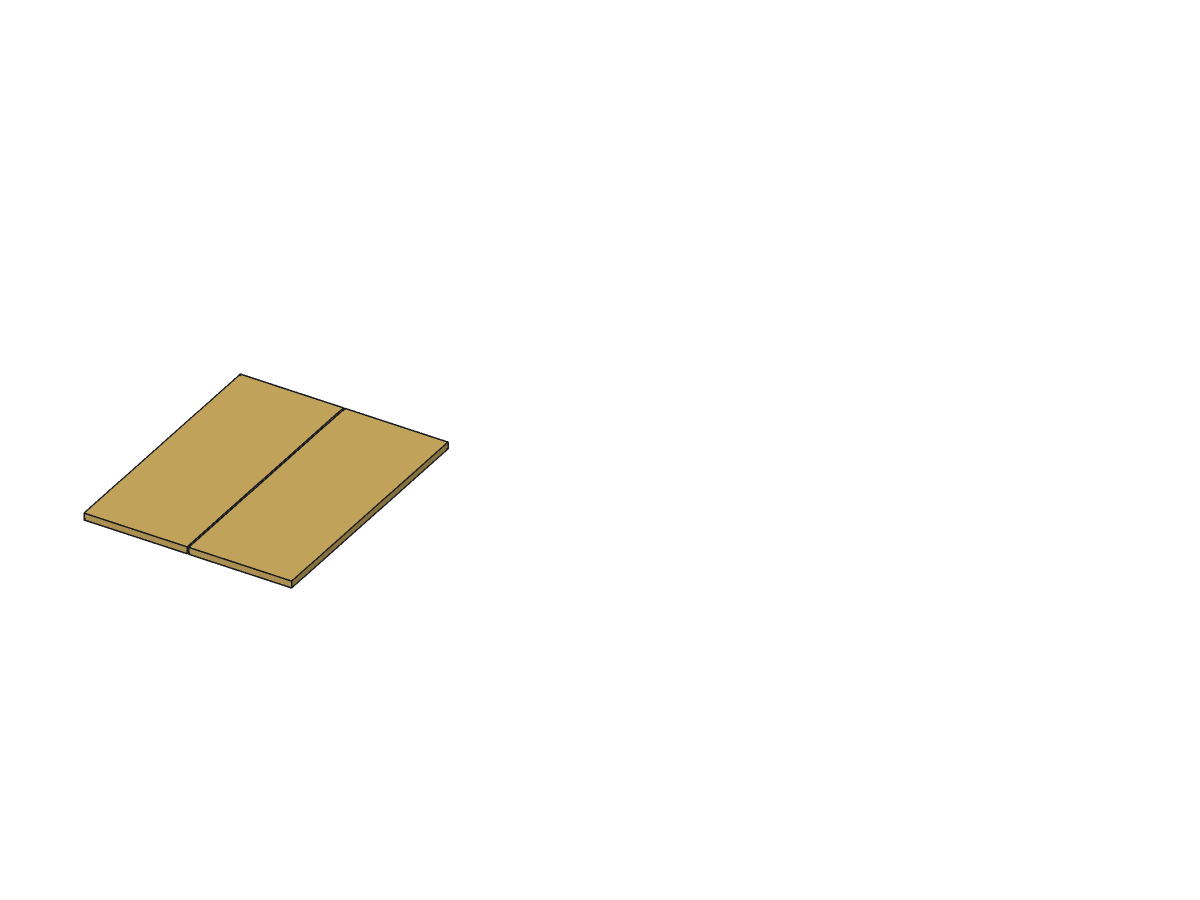

  1. Weld Starter Kit with Lone Star Die, assembly step 1
    STEP 1

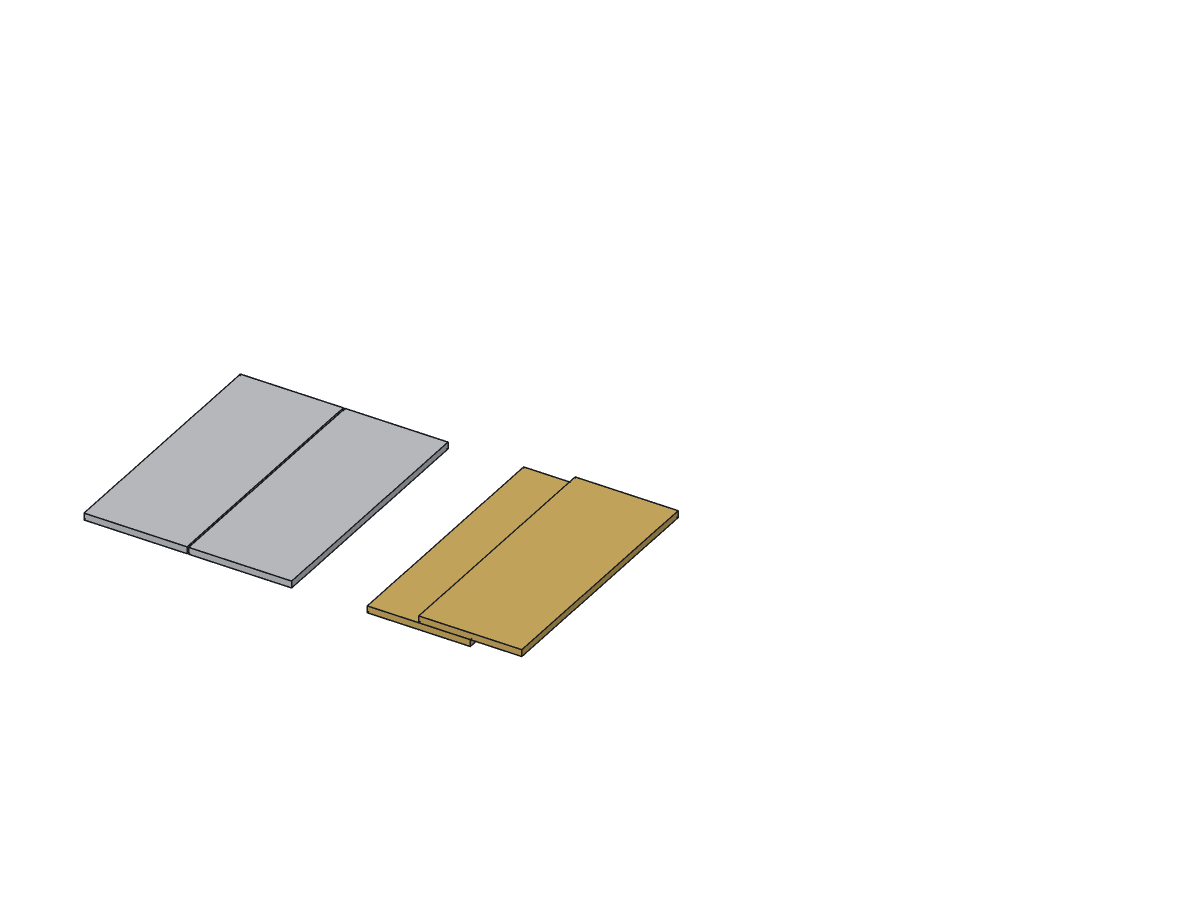

  2. Weld Starter Kit with Lone Star Die, assembly step 2
    STEP 2

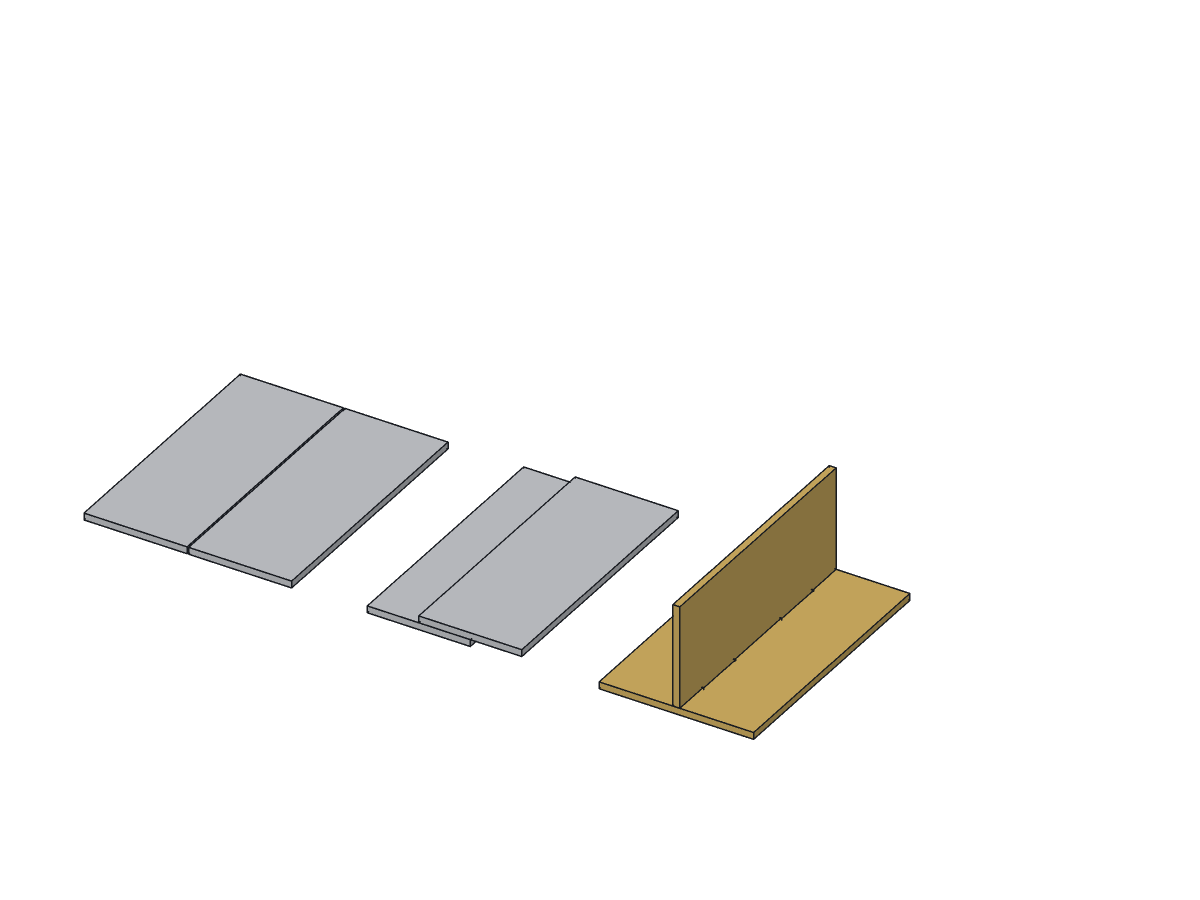

  3. Weld Starter Kit with Lone Star Die, assembly step 3
    STEP 3

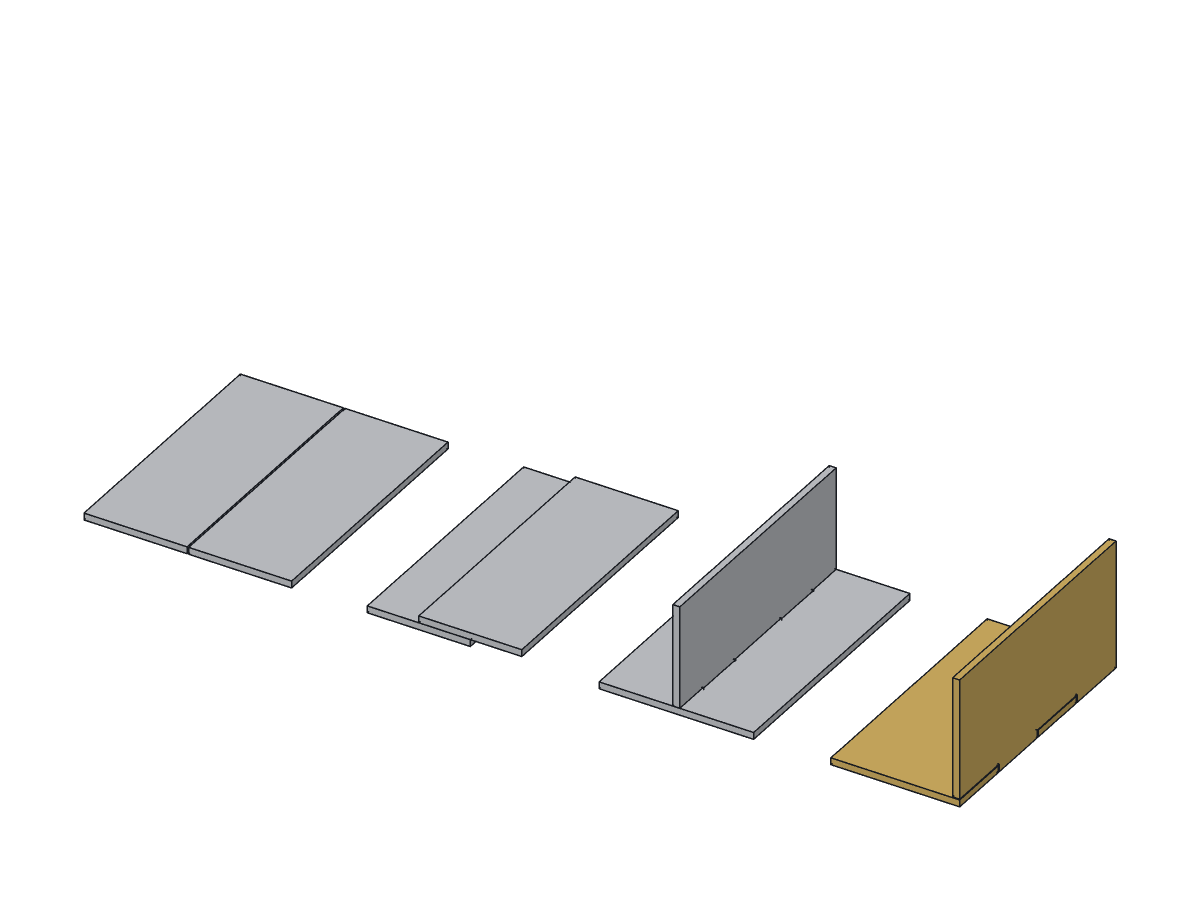

  4. Weld Starter Kit with Lone Star Die, assembly step 4
    STEP 4

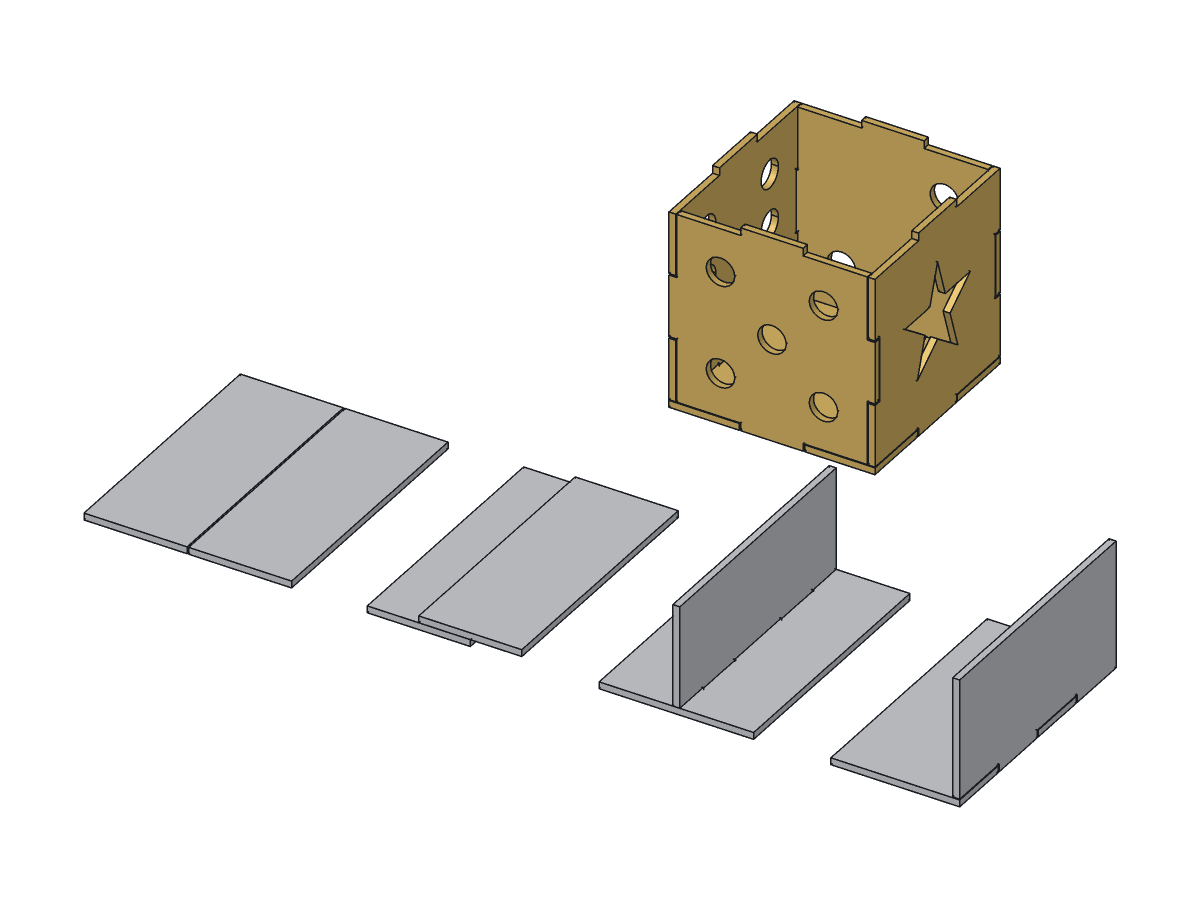

  5. Weld Starter Kit with Lone Star Die, assembly step 5
    STEP 5

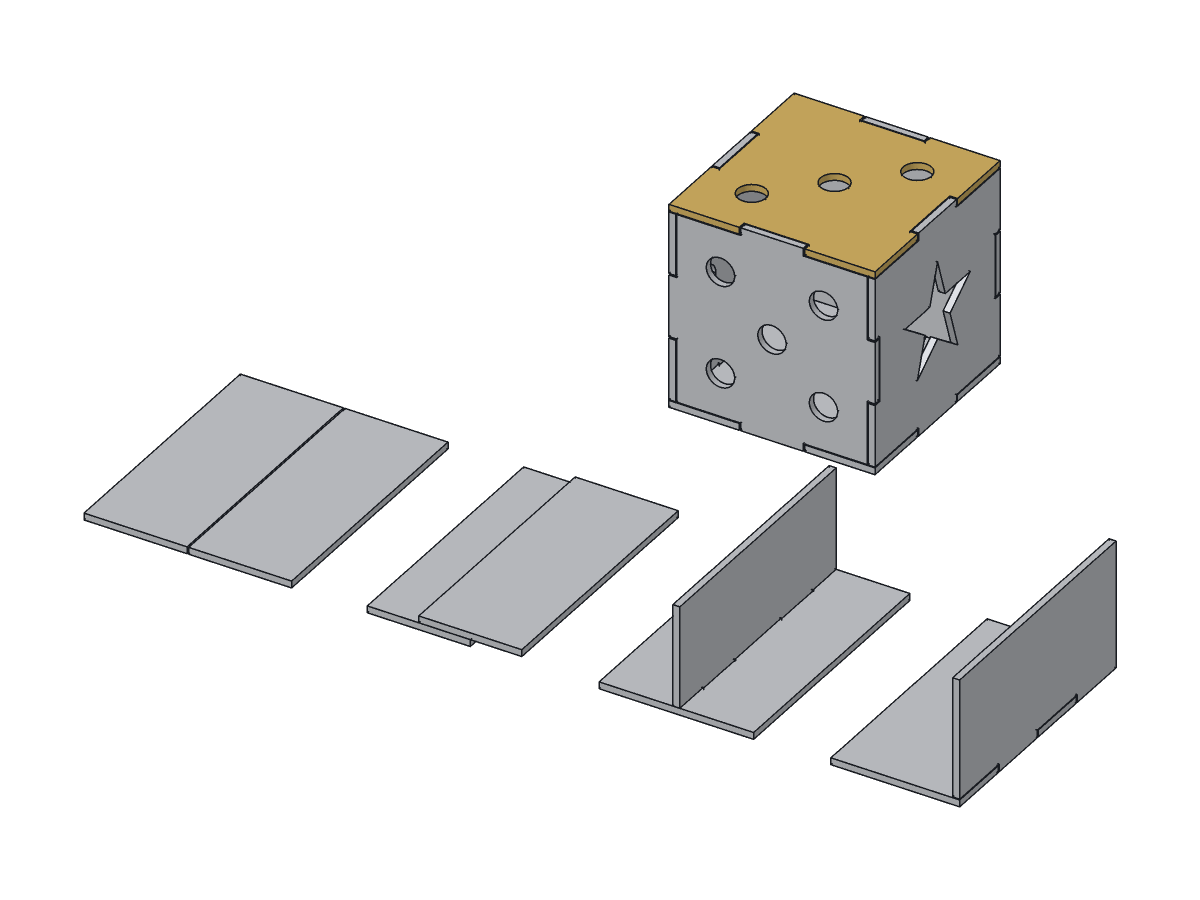

  6. Weld Starter Kit with Lone Star Die, assembly step 6
    STEP 6

What you’ll need

  • MIG or flux-core welder (a 120 V machine is plenty for 10 ga)
  • Angle grinder with a flap disc and wire wheel
  • Two small clamps and pliers for hot parts
  • Small square
  • Welding helmet, gloves, long sleeves and safety glasses

Finishing

  • The parts ship bare with a light oil film. Wipe them down with a degreaser before welding.
  • Grind the die's edges round and sand the faces for a cast look.
  • Clear-coat or paint the die, or let it rust to a patina. Practice pieces can stay raw.

Safety

  • Weld in a ventilated area cleared of anything that can burn.
  • Wear a helmet, gloves and long sleeves; never look at the arc without protection.
  • Welded parts stay hot for several minutes. Handle them with pliers or let them cool.
  • The finished die is solid steel and weighs over 3 lb. It's a desk piece, not a toy to throw.
COMING SOON

Want one?

Tell us you’re interested in this kit and our team will follow up when it’s ready. No account needed.

Ask about this kit
