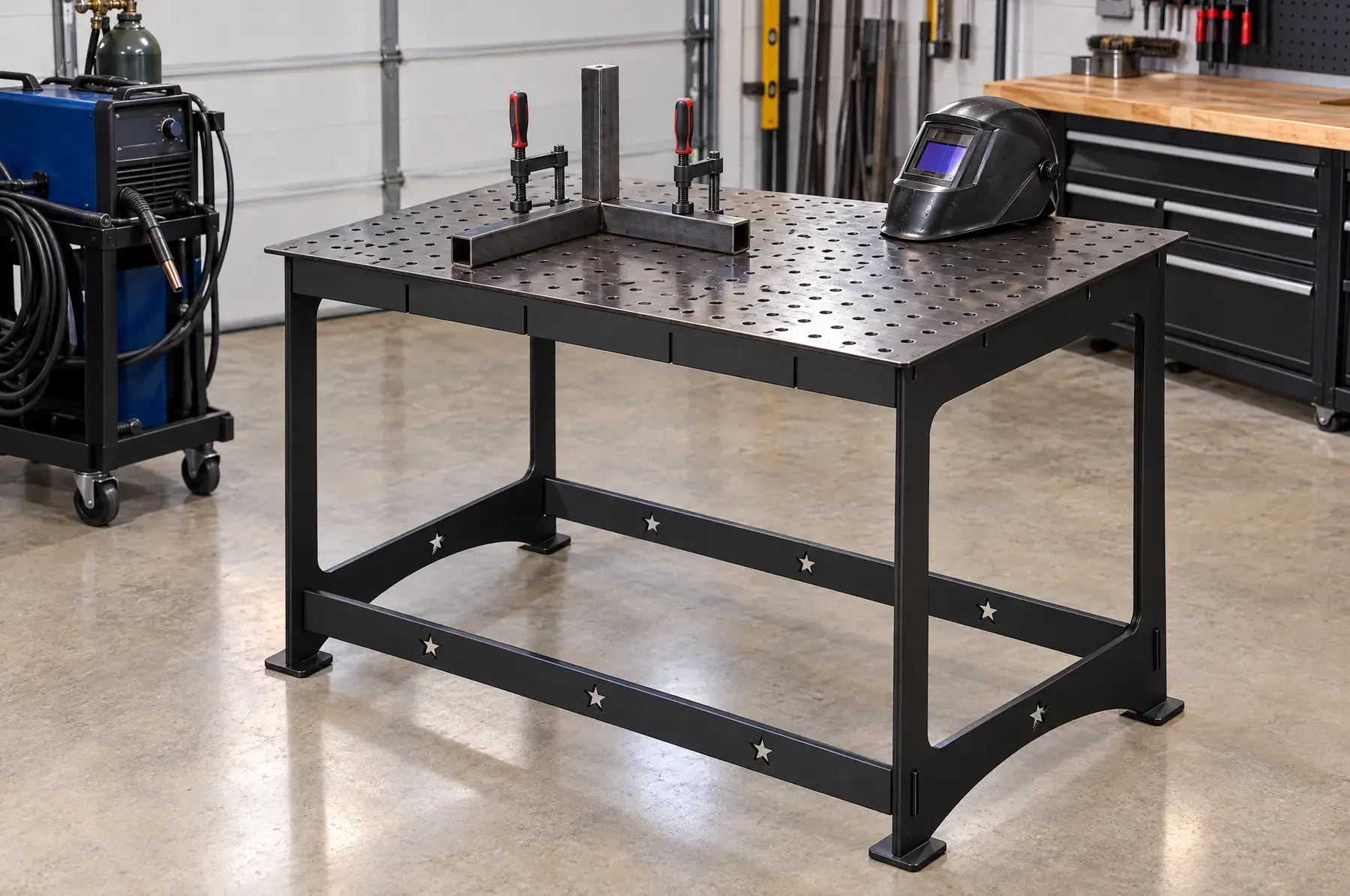

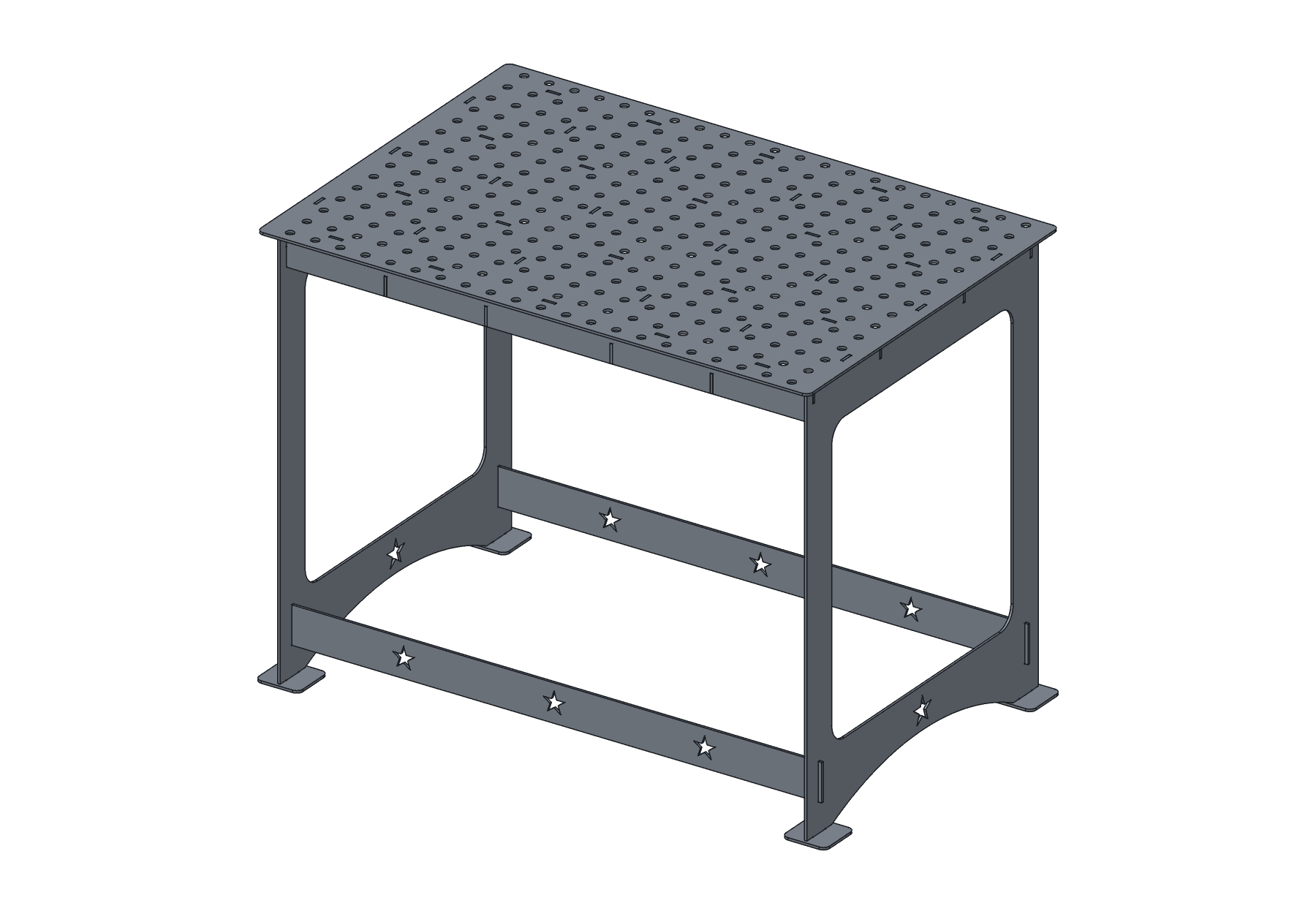

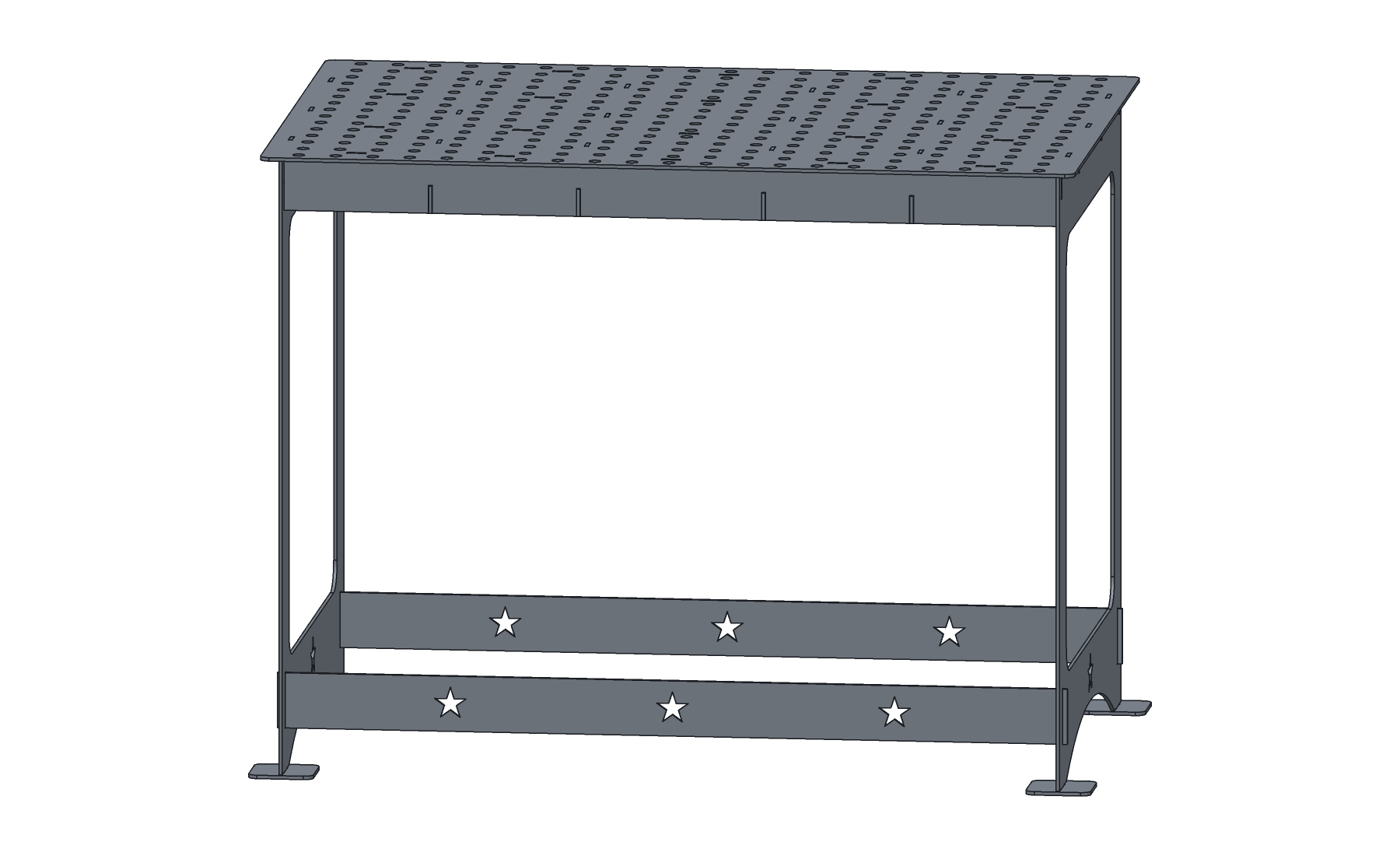

Concept imageA complete 3/16 in steel welding table kit, top and legs. The one-piece top has 315 clamp holes (16 mm on a 2 in grid) for standard fixture clamps. Underneath, a locked rib grid stays clear of every hole, and Lone Star end frames make the legs. You build it upside down on its own top, so it comes out flat. Every joint is tab and slot. Cut in Greenville, Texas.
Coming soonEvery kit is prototyped and test-built before it goes on sale.
Ships flat in 4 parcel boxes, 32–67 lb each.
44 × 30 in flat, 65 lb each
42-3/16 × 3-3/16 in flat, 6.7 lb each
26-3/16 × 3-3/16 in flat, 4.1 lb each
27-11/16 × 34 in flat, 20 lb each
42-11/16 × 3 in flat, 6.7 lb each
3-1/2 × 3-1/2 in flat, 0.6 lb each

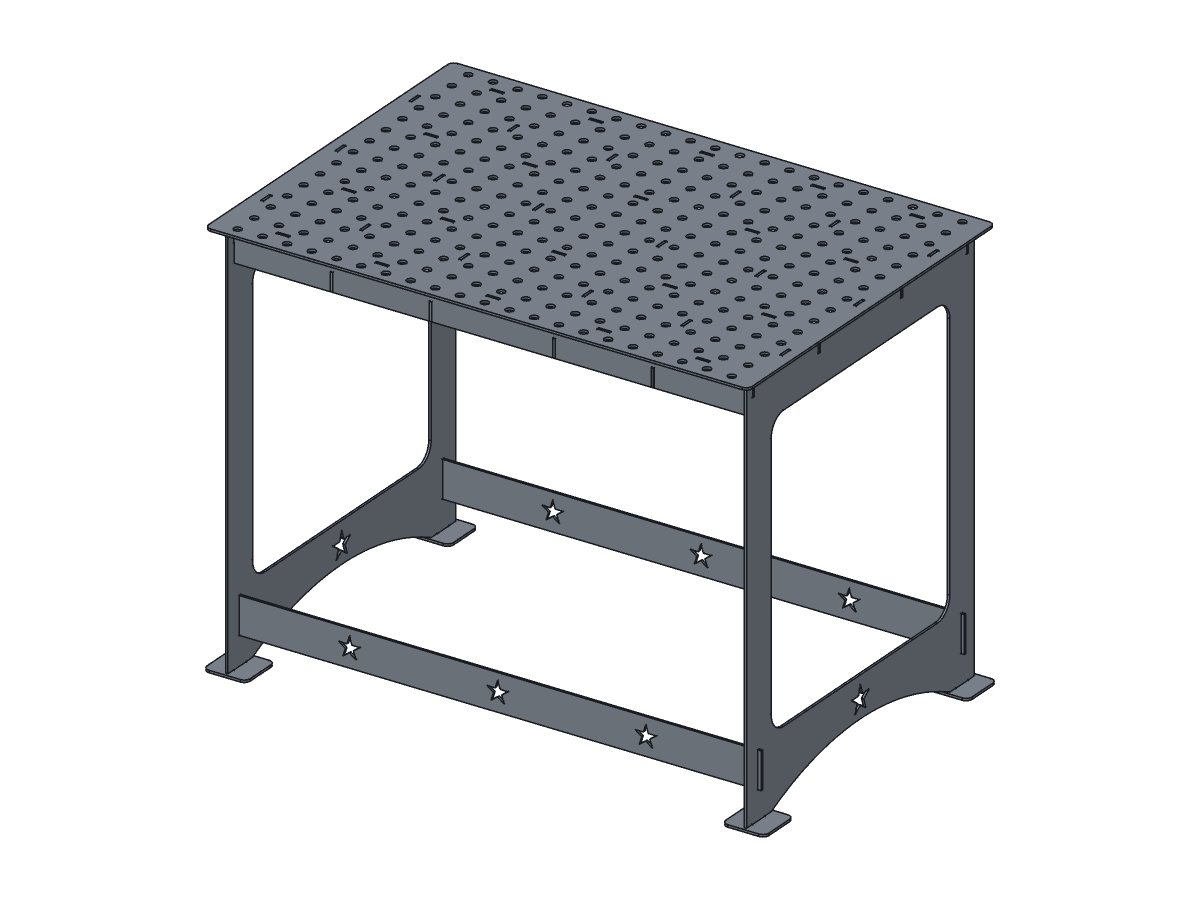

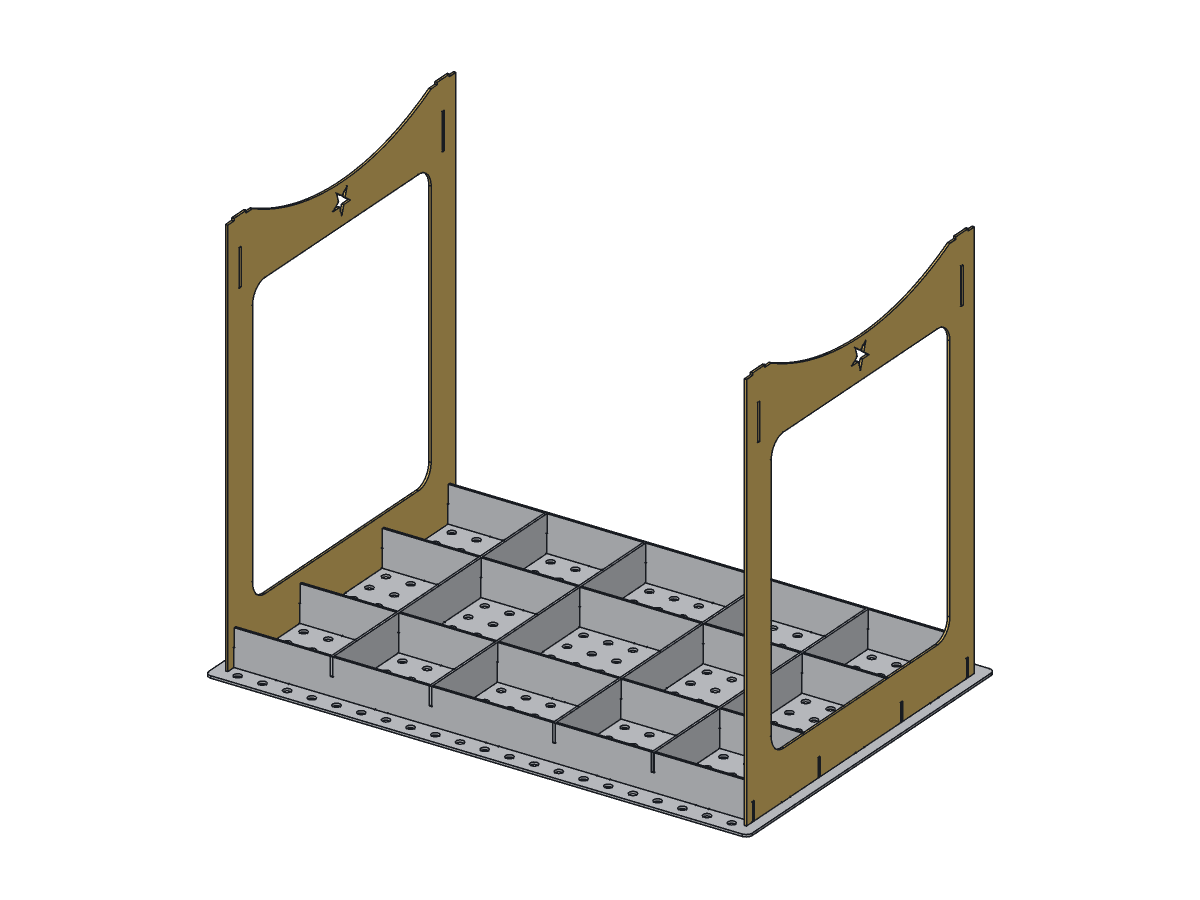

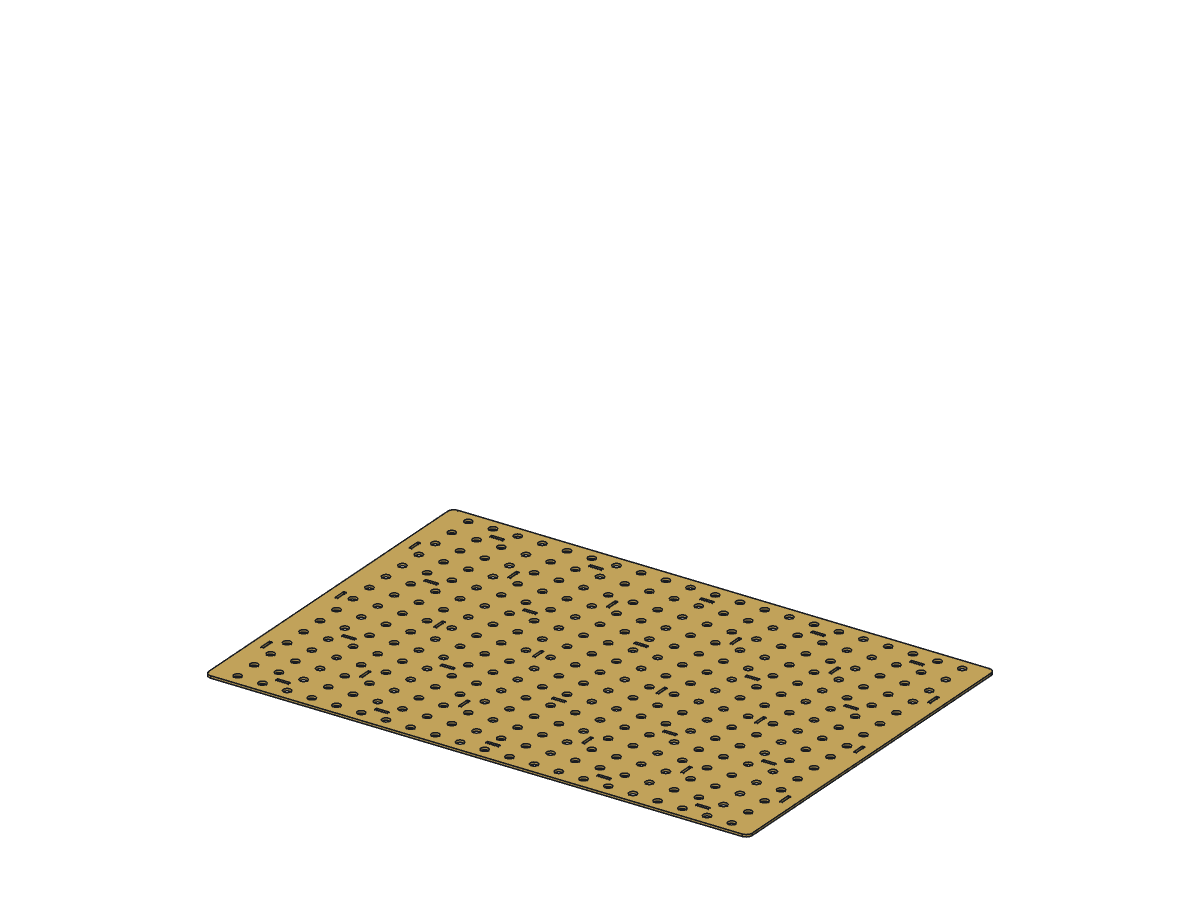

The illustrated assembly guide walks through every fit-up, tack and weld. Download the guide (PDF).
Tell us you’re interested in this kit and our team will follow up when it’s ready. No account needed.
Ask about this kit
Concept imageThe classic Texas barn star, in steel you weld yourself. Ten laser-cut 10 ga facets rise to a point over five ribs and a back plate, and every facet drops onto tabs that put it in exactly the right place. 18 inches across, it hangs on one screw.
Concept imageA half cooking grate you weld yourself, made to sit on the FP30 Lone Star fire pit. Laser-cut 10 ga steel bars stand on edge and lock into two cross ties and two handle rails, 20 parts in all. It covers half the pit, so you can cook on one side and feed the fire on the other.
Concept imageA 30-inch square fire pit you weld yourself. Ten laser-cut 10 ga steel parts lock together with box-jointed corners and tab-and-slot joints, so it squares itself up before you strike an arc.
